> Radius & angle wheel dresser j&s tool company rec-75

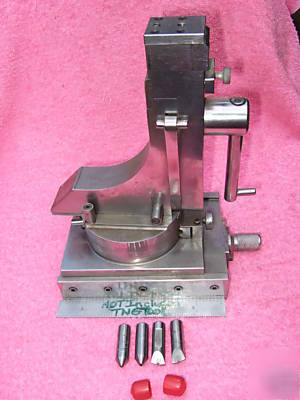

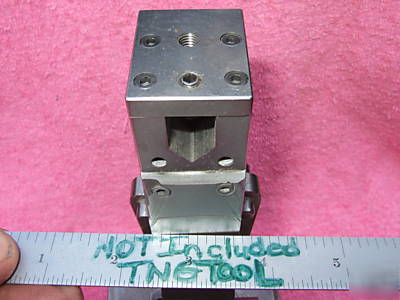

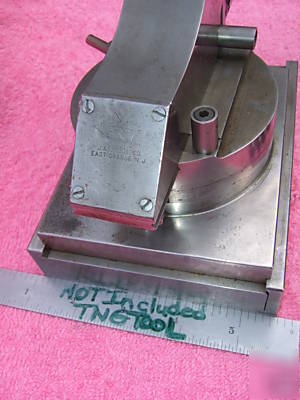

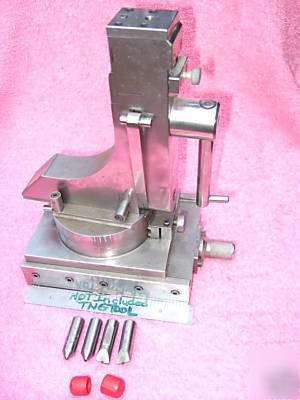

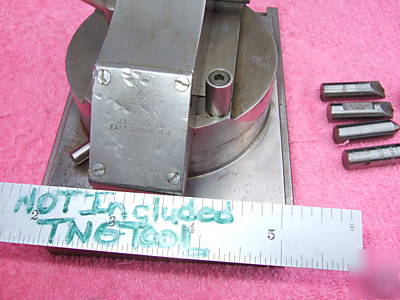

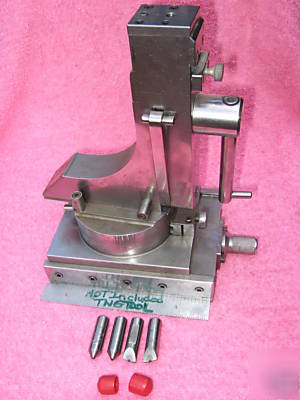

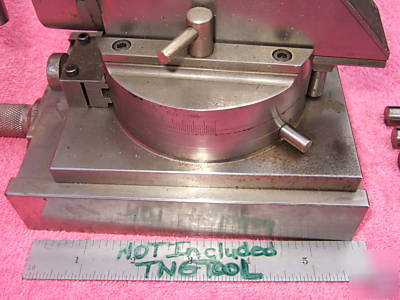

Radius & angle wheel dresser j&s tool company rec-75
The original J&S Fluidmotion Radius and Angle Wheel Dresser Proven quality, performance, and durability for over 50 years. SPECS BLEOW TAKEN FROM BROCHURE
* Simple to setup and dress two angles tangent to a radius in one continuous Fluidmotion
* Dress complex forms on cylindrical, surface, tool and cutter grinding wheels
* concave or convex radius at a full 180 degrees consistently
* Generates clean, precise wheel profiles entirely free of chatter marks
* Guaranteed to .0001" accuracy when new
* No need to pre-set diamond or ese any other tool except a micrometer and a simple hex wrench

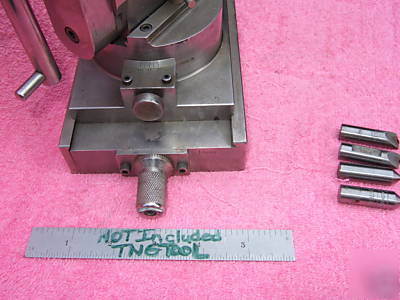

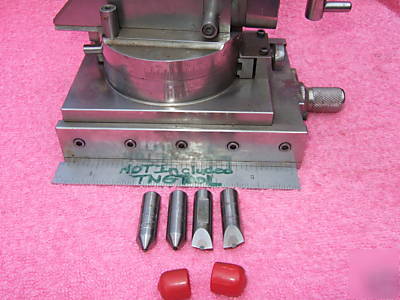

* Micrometer base with 1.0" travel - feeds dresser to the wheel
* Wheel dresser supplied with a durable hard red leather case.
* Concave Radius Min. and Max is 1/32"- 3"
* Convex Radius Min. and Max is 0"- 3"
* Max Wheel Diameter is 12.0"
* Fixed Height of Diamond Above Table is 8-5/8"
* Micrometer Base Dimensions are 4-1/2" X 6"
