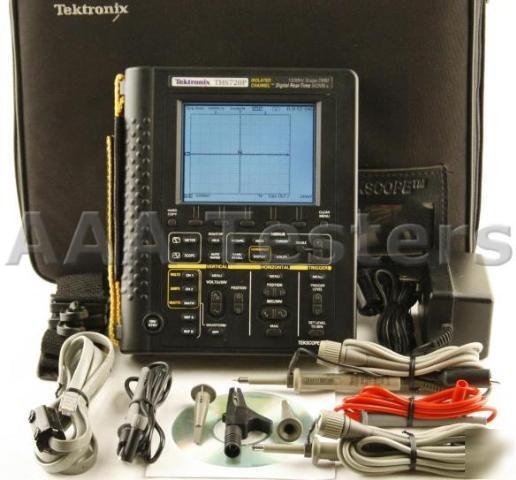

Tektronix tekscope THS720P 100MHZ oscilloscope THS720
* Tektronix TekScope THS720P Oscilloscope
* (2) Tektronix Tek P6119 10x Voltage Probe
* Fluke 1000V Test Lead Set (1 Red - 1 Black)
* Programming Manual On CD-ROM
Tektronix TekScope THS720P HandHeld 100MHz Dual-Channel Oscilloscope
The THS720P TekScope IsolatedChannel Oscilloscope/DMM is ideal for electrical/ power electronics applications. The THS720P includes features specifically for electrical/power electronics measurements which allow testing and verifying correct operation of motors, checking transformer efficiency, verifying powersupply performance and measuring the effect of neutral current. These features include harmonic analysis, power measurements and statistics and PWM motor drive triggering. It also contains the powerful features of a modern oscilloscope that enable troubleshooting and verification of complicated electronic control circuits controlling the high-voltage powerelectronics circuitry.
The THS720P shares measurement features with the THS730A, THS720A Oscilloscope/DMMs, which are ideal for electronic applications.
* 500 MS/s Sampling Rates per Channel
* Two Channels and Dual Digitizers
* 33 4 Digit DMM with Datalogger
* Extra Bright Backlit Display
* Independently Floating Isolated Oscilloscope and DMM Channels for Safety
* Full Floating Measurement Capability up to 600 VRMS
* Advanced Trigger Delay, Pulse and Video (Line Count and Field Select)
* RS-232 Programmability/ Communications
* NiCd Battery and AC Adapter
* Field or Bench Electronic Troubleshooting
* Floating (Nongrounded) System Measurements
* Sample Rate (each channel): 500 MS/s
* Time/Division Range: 5 ns to 50s/div
* Sensitivity: 5 mV to 50 V/div (to 500 V/div with 10X probe).
* Vertical Resolution: 8-Bits.
* Record Length: 2500 points.
* Horizontal Accuracy: 200 ppm.
* Autorange: User-selectable.
* Trigger Modes: Auto, Normal.
* Trigger Types: Edge, Pulse, Video, External.
* Video Trigger Formats and Field Rates: Odd field, even field and line.
* Motor Trigger Triggers on 3- and 5-level pulse-width modulated power signal.
* Harmonics Up to 31st (30 Hz to 450 Hz).
* External Trigger Input: 5 MHz TTL compatible.
* Waveform Processing: Add, Subtract, Multiply, Calculate Watts = V x I.
* Waveform Storage: 10 waveforms.
* Acquisition Modes: Sample, Envelope, Average, Peak Detect.
* Cursor Measurements: delta Volts, Time, 1/ Time (Hz), Degree (phase).
* Cursor Types: Horizontal Bars, Vertical Bars, Paired (volts @ time).
* Display System: Interpolation: Sin(x)/x. Format: YT and XY. Mode: Vector, Dot, Vector Accumulate, Dot Accumulate.
* DC Voltage Ranges: 400.0 mV to 880 V.
* DC Volts Accuracy: (0.5% of reading + 5 counts).
* True RMS AC Voltage Ranges: 400.0 mV to 640 V.
* Maximum Float Voltage: 600 VRMS CAT II, each channel (probe dependent).
* Resolution: 4000 count, 3-3/4 digits.
* AC Volts Accuracy: (2% of reading + 5 counts).
* Resistance Ranges: 400.0 to 40.00 M .
* Resistance Accuracy: (0.5% of reading + 2 counts); 40 M : (2% of reading + 5 counts).
* Diode Test Range: 0 to 2 V.
* Continuity Check: Audible tone when < 50 .
* Modes: Min, Max, , Max-Min, Avg, Hold.
* Nonvolatile Storage: 10 DMM screenshots.
* Vertical Zoom Capability: 2X, 5X, 10X.
* dB Scale: Selectable, referenced from 1 mV to 10 V.
* dBm Scale: Selectable, referenced from 50 to 600 .
* Safety: UL3111-1, CSA1010.1, EN61010-1, IEC61010.1.
* EMC: Meets Directive 89/336/EEC.
* Power: NiCd rechargeable battery pack with AC adapter (both included).
* Battery Life: Approx. 2 hours from full charge.
* Display Resolution: 320 x 240.
