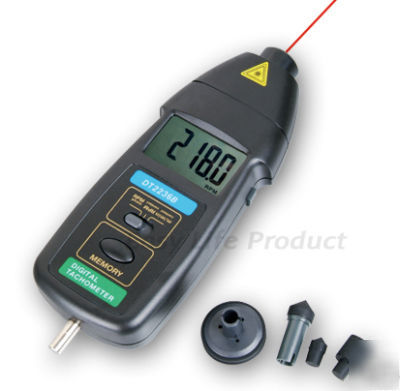

2 in 1 digital laser photo & contact tachometer rpm ap
This deluxe version of tachometer allows you to measure either by "laser photo (non-contact method)" or "connected with the object (contact method)". You could choose to operate the meter in the following 3 modes:
* Laser photo (non-contact) : measures the RPM
* Contact rotational speed (contact) : measures the RPM
* Contact surface speed (contact) : measures the m / min.
Much in advance with other models with wide measuring range of 0.5 to 100,000RPM
* Wide measuring range and high resolution
* Measures exact RPM with no guessing or errors
* Memorized the last value, max. value and min. value
* LCD Display : 5 digits, 18mm
1. Laser photo tachometer : 2.5 to 99,999 RPM
2. Contact Tachometer : 0.5 to 19,999 RPM
3. Surface Speed : 0.05 to 1,999.9 m/min
1. Laser photo tachometer : 0.1 RPM (2.5 to 9999.9 RPM) ; 1RPM (over 1000RPM)
2. Contact Tachometer : 0.1 RPM (0.5 to 9999.9 RPM) ; 1RPM (over 1000RPM)
3. Surface Speed : 0.01 m/min. (0.05 to 99.99 m/min.) ; 0.1m/min. (over 100m/min)
* Accuracy " +/- (0.05% + 1 digit)
* Sampling time : 0.8 sec. (over 60 RPM)
* Test range selection : automatic
* Memory : max value, min value and last value
* Wide detecting distance : 50 to 500 mm (or 2 inch to 20 inch), applicable to laser photo tachometer
* Time base : 6 MHz crystal oscillator
* Used 4 x AAA batteries (INCLUDED)
* Item weight : approx 180 g (included batteries)
* Approx. 600mm long reflective tape marks
* 1pc x Contact speed measurement fitting
* 3pcs x Contact rotational speed measurement fitting
* 1 set x Instruction Manual
* Black carrying case with factory box
* US $10.99 per unit to worldwide
