Portable video borescope, boroscope, bore scope

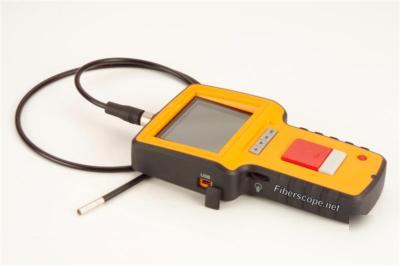

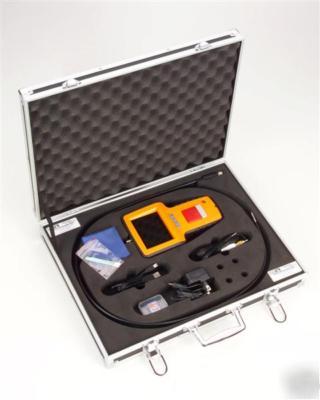

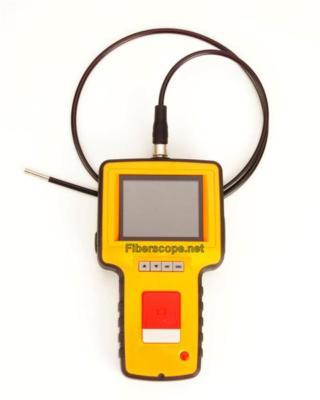

This PORTABLE FLEXIBLE VIDEO BORESCOPE WITH INTEGRATED MONITOR and VIDEO/IMAGE CAPTURE is available for many applications but specifically inspections of machinery, engines, construction sites, and manufactured goods. The presence of a 3.5 Monitor, with image and video capture enables direct discussions with clients about the inspections, allowing for better communication and understanding.
The unit s 5.5mm outer diameter can easily access small spaces including the spark plug holes of gasoline or diesel engines. The extra-wide angle camera takes pictures up to 640x480 resolution.
* Built in LED Light source with 4 super bright white lights:
With the presence of 4 extra-bright LED light sources (0~275Lux/4cm), every detail of your target will be illuminated.
* Oil and scratch resistant tempered glass not only protects the camera, but also maintains the high image resolution.
* The optimized illuminant design will spotlight every aspect of your inspections, allowing examinations of highly reflective surfaces too.
* Rapid insertion probe assembly:
Rather than one fixed Video Probe this unit allows you to easily switch one insertion tube with another. Video Probe Length includes 1M insertion probe. 2M, 10M and 30M probes are optionally available in our store. Therefore a full range of inspections is faster and easier than ever before.
Insertion Tube & Light Source SPECs.
* Image Sensor: CMOS Image Sensor
* Resolution (Dynamic / Static): 320(H)*240(V) / 640(H)*480(V)
Tip (Insertion Tube) Diameter: 5.5mm (0.216")
Insertion Tube Length: 3M (10')
* Depth of Field (DOF): 1.5cm~10cm
* Light Source: 4 White LEDs
* Display: 3.5 TFT LCD Monitor 320*240 Pixels
* Interface: Mini usb 1.1/ AV out/ Av in/
* Battery: Rechargeable Li-Polymer Battery (3.7V)
* Video Out Format: NTSC & PAL

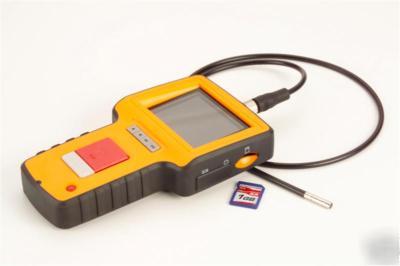

* Recording Medium: SD card (capacity can be up to 2G)
* Still Image Storage Format: JPEG (640*480)
* Video Recording Format: ASF (320*240)
Bellow are some sample images taken with the MVBS video borescope system
