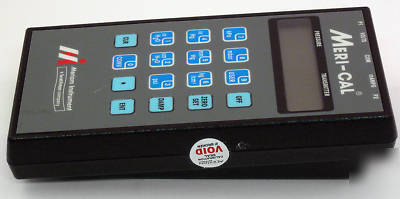

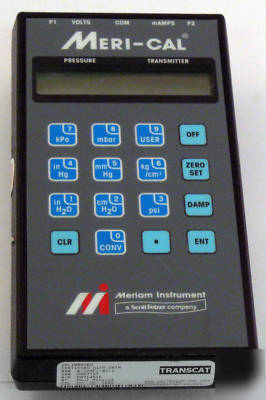

Meri-cal i digital manometer w/pressure kit DP200I
Meri-Cal I Digital Manometer Pressure Calibrator w/Pressure Kit
The Meri-Cal is a portable digital manometer & calibrator for pressure and differential pressure measurement. It features high accuracy and rugged design that brings laboratory test and calibration capability to the field. Meri-Cal s display simultaneously indicates pressure (or differential pressure) and electronic transducer/transmitter output in any of eight key selectable engineering units. Meri-Cal continues to provide the most cost effective and useful method of precise measurements.
Approvals: CSA certification for intrinsic safety use in Class 1,
DP Model: Differential Pressure Models can read pressure and Vacuum
Display: 8 digit (4 pressure or DP and 4 voltage or current)
LCD type with .3" high (7.6 mm) digits.
NIST traceability: NIST certificate supplied for all models.
Power: NI-CAD Rechargeable, Minimum of 40 Hrs
Temperature: Storage: -40 F to 140 F (-40 C to 60 C)
Operating: -20 F to 122 F (-6.7 C to 50 C)
Effect: None within the calibrated range of -4 to 104 F

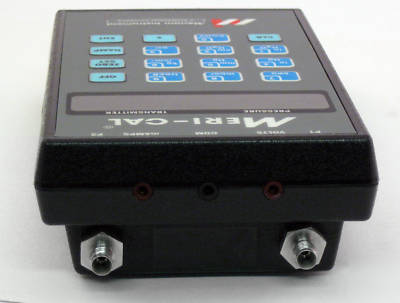

Process connection: 1/8" OD Presto-lok
Enclosure: 1.1 pounds (0.5 kg) 4" x 7.5" x 1.9"
Impact resistant ABS material.
Pressure limits: Twice range on Gauge (LP) units. Twice range on
Differential (DP) units when pressurized on high
side only and 150 PSI (10.5 Kg/cm2) static when
applied to both sides of the sensor simultaneously.
Media compatibility: clean, dry, non-corrosive gases (No Fluids)
Auto Zero: A push of a button automatically establishes zero.
Engineering units: in H2O at 20 C, cm H2O, PSI, in Hg at 0 C,
mm Hg, Kg/cm2, kPa, mBar and user scaled.
Resolution: Auto-ranging for optimal accuracy and resolution
of the display for both pressure and electrical inputs.
Electrical Measurement: Voltage: 0 to 30 Vdc, Current: 0 to 30 mAdc
Accuracy: Pressure: +/- 0.1% of reading, +/- 1 count,
Voltage/Current: +/- 0.1% of reading, +/- 2 counts.
Optional: +/- 0.05% of reading, +/-1 count on pressure
Pressure Kit: Includes Air Pump, Fittings, AC
Adapter, Tubing, Leads & hard Case
