12 ton 12" strk hannifin 12 ton, 12" str hydraulic pres
12 Ton 12" Strk Hannifin 12 Ton, 12" Str HYDRAULIC PRES
12 Ton 12" Stroke Hannifin 12 Ton, 12" Str HYDRAULIC PRESS

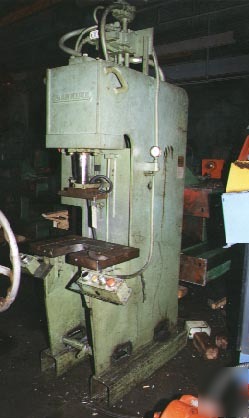

12 TON HANNIFIN HYDRAULIC MULTI-PRESS
RATED CAPACITY ............................ 12 TONS
STROKE .................................... 12"
DAYLIGHT/GAP .............................. 18"
THROAT .................................... 8"
BED AREA ...........(LR X FB).............. 16" X 13-1/2"
"U" SLOT .................................. 3"
CYLINDER BORE DIAMETER .................... 4"
CYLINDER ROD DIAMETER ..................... 2-1/2"
MAXIMUM OP. PRESSURE ...................... 1910
MINIMUM OP. PRESSURE ...................... 200
RESERVOIR CAPACITY ........................ 22 GALLONS
PUMP GPM .................................. 9
APPR. RAM SPEEDS: ADVANCE ................. 402 IPM
PRESS ................... 148 IPM
RETURN .................. 257 IPM
