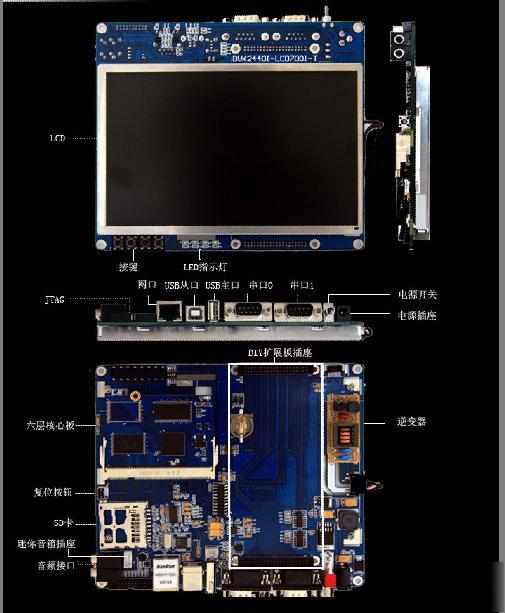

Mini-2440 samsung S3C2240 ARM9 core board + 7" tft lcd
* mini-2440, Samsung S3C2240 ARM9 Board + 7" TFT
* Samsung S3C2440A 400MHz, Max freq. 533Mhz
* 2MB Nor Flash, BIOS installed
* 4 wire resistive touch screen interface
* Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
* Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels
* In box NEC 256K color 800x480/7 inches TFT screen, with touch screen
* 1 x 10/100M Ethernet RJ-45(DM9000)
* 3 x Serial Ports(1 RS232 with CTS and RTS)
* 1 x Stereo audio out, 1 Micro In
* 1 x POT can be used for A/D converter adjust
* 1 x 20-Pin Camera Interface
* Power In(5V), with switch and lamp
* 1 x 40-Pin 2.0mm System Bus
- 1 x S3C2440 board (Preload with Linux),
- 1 x Net cable, 1 x USB cable, 1 x Serial cable
- 1 Parallel port wiggler JTAG emulator(for H-JTAG),
- 1 DVD-ROM with product reference
- 1 NEC LCD: 7", 800x480, with touch panel
