Digital lcd multimeter ammeter ohmmeter ohm voltmeter y

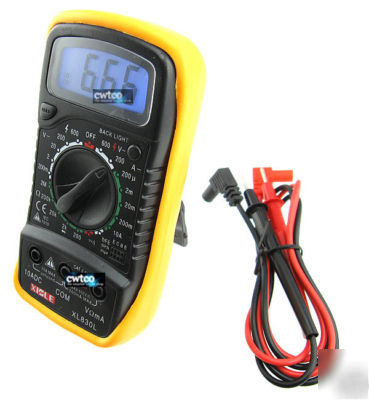

Digital MultiMeter with Backlight
* A handheld digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode and Transistor with battery operated
* Blue backlight - good for use in dark
* Thick rubber casing protects the multimeter from splashes and minor bumps
* Test leads and 9V battery included
* Low power requirement with auto power off
* DC Voltage: 200mV/2V/20V/200V 0.5%, 600V 0.8%
* AC Voltage: 200V/600V 1.2%
* DC Current: 200 A/2mA/20mA 1%, 200mA 1.5%, 10A 3%
* Resistance: 200 /2K /20K /200K /2M 0.8%
* Fuse protection: F-200mA/250V
* Operating Temperature: -0C to 40C
* Overrange Indication: Only figure "1" on the display
* Polarity Indication: "-" displayed for negative polarity
* Low Battery Indication: - /+ display
* Dimension: 138mm x 69mm x 31mm
* 1 x Instruction Manual in English
* Delivery time is approx. 7-12 business days to most destinations:
* 8-14days to USA/ Canada
* 10-14days to major cities in Europe
