> Galil dmc-1010 motion controller, 1AXIS, free shipping

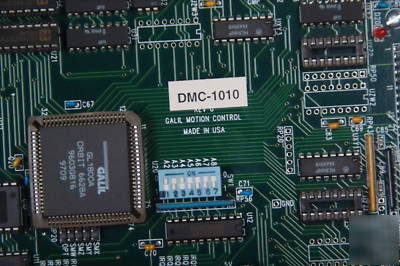

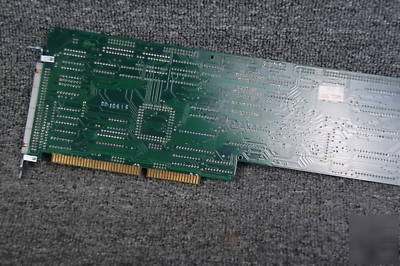

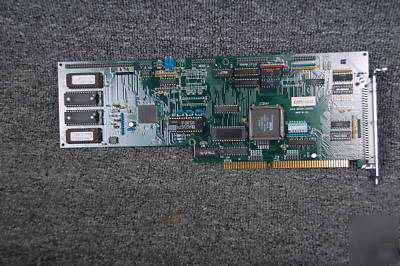

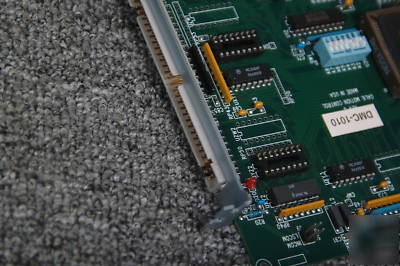

Galil dmc-1010 motion controller, 1AXIS, free shipping
* TAKEN FROM WORKING EQUIPMENT.
_ Modes of motion include jogging, point-to-point positioning, contouring, linear and circular interpolation, electronic gearing and ecam
_ Dual-loop control and backlash compensation
_ Servo loop update rates as low as 125 microsecond/axis
_ Encoder frequencies up to 8 MHz; Step motors up to 2 MHz
_ Software PID control with velocity and acceleration feedforward, offsets and integration limits
_ Motion Smoothing to eliminate jerk
_ Linear and Circular interpolation includes ellipse scaling, slow-down around corners, infinite segment feed, feedrate override
_ Provides main and auxiliary encoder inputs for each servo axis
_ 8 uncommitted, optoisolated inputs and 8 TTL outputs for 1- through 4-axis versions
_ 24 uncommitted inputs and 16 TTL outputs for 5- through 8-axis versions
_ 64 TTL inputs, 32 TTL outputs with DB-10096 attachment board
_ 72 I/O with DMC-1500-72 and DMC-1000-72
_ 7 uncommitted analog inputs with 12-bit ADC standard; upgrade for 16-bit
_ Optoisolated Forward and Reverse limits and home input for each axis
_ High-speed position capture for each axis
_ On-board memory for storing applicationprograms, variables and arrays
_ Non-volatile memory for parameter storage
_ Programmable event triggers including At Time, At Position, At Input, At Speed
_ Automatic program execution upon power-up for stand-alone version
_ Intuitive, English-like command language with over 200 commands directly executable by controller
_ Multitasking for simultaneous execution of up to four applications programs
_ Extensive DLLs and documentation for C/C++ programmers
_ Software tools for automatic servo tuning and analysis; ActiveX controls for Visual Basic
_ Drivers for Linux, QNX, DOS, and all Windows operating systems
_ ISA, VME cards or stand-alone box with RS232/RS422
_ Controls step motors and servo motors on any combination of axes
Due to the nature of electronic components we are not able to offer a warranty or accept returns.
