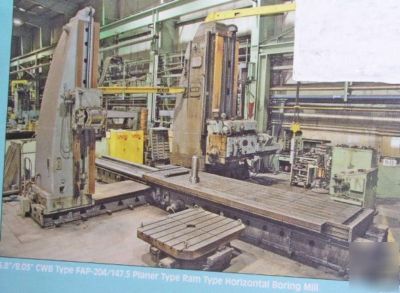

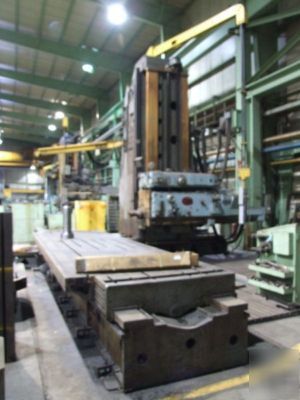

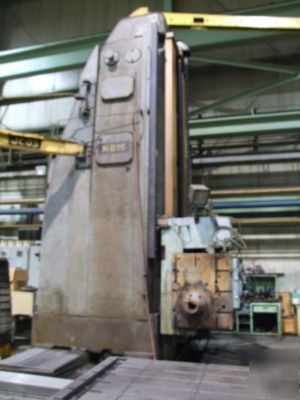

5.8 INNOCENTI CWB Planer type Horizontal Boring Mill, Model FAP 204/147.5, S/N 574, New 1953
Max. normal boring capacity in cast iron 49.2
Max. normal milling cutter diameter 27.6
Max. normal drilling capacity in steel 3.15
Tailstock bearing diameter 11.42
Longitudinal travel of boring spindle 59.06
Longitudinal travel of spindle carriage 29.53
Cross column travel on bed 90.56
Total longitudinal travel 179.15
Longitudinal travel of end support column on bed 78.4
Min. and Max. distance between facing head
and end support bearing 48 -246.86
Working surface of table 68.5 x 229.1
Vertical travel of headstock 130
Vertical travel of end support bearing 130
Variable spindle speeds 2.58-643 RPM
Facing head speeds 1.32-56 RPM
Boring spindle and spindle carriage feeds:
Variable milling feeds .025-63 IPM
Rapid traverse of table, column and
Rapid movement of end support column 81.6 IPM
Rapid movement of end support bearing 38.5 IPM
Spindle carriage travel (longitudinal)
End support on bed with vertical and horizontal travel
T-Slotted faceplate with (2) tool holders
T-Slotted headstock plate for mounting accessories
General Electric Speed Variator
DC-300 drives replaced with controls 1988
Overall Dimensions: 432 L x 354.3 W x 245.4 High
