28"/40" x 157" tos-trencin gap-type engine lathe #25734

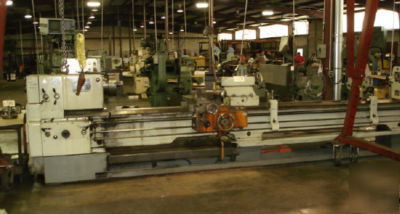

28"/40" x 157" TOS-TRENCIN GAP-TYPE ENGINE LATHE
New 1994, Serial No 077140940037, Model SN71C,
Hole Thru Spindle...................... 2.8"
Swing Over Bed Ways, Rated............. 27"
Swing Over Bed Ways, Actual............ 28"
Swing thru Gap......................... 40"
Swing Over Cross-Slide................. 16.5"
Distance Between Centers............... 157"
Gap Length............................. 11.8"
Tailstock, Spindle Travel.............. 9.4"
(16) Spindle Speeds, Range............. 10 to 1000 RPM
Carriage Longitudinal Feeds............ .001 to .251 IPR
Cross-Slide Cross Feeds................ .009 to .125 IPR
(38) Whitworth Thread Changes, Range... 1 to 80 TPI
(29) Metric Leads, Range............... .5 to 40 MM
(26) Module Threads, Range............. .25 to 20
(31) D.P. Threads...................... 1/2 to 72
