Mcbain oriel aerotech precision optical mask aligner
McBain Oriel Aerotech Precision Optical Mask Aligner

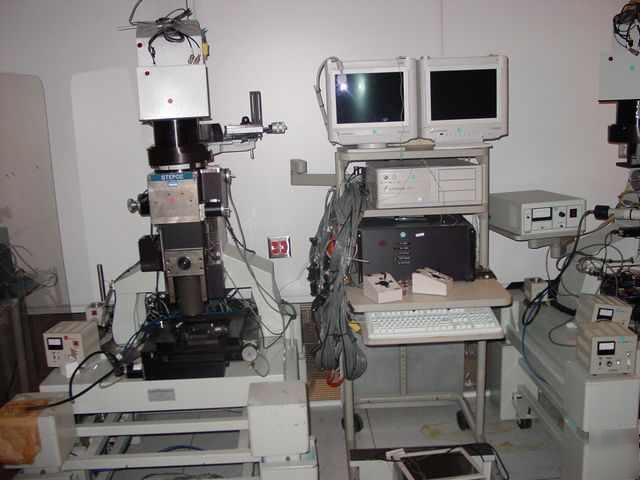

Mask Alignment System ~ Oriel Aerotech Compumotor 38810 ATS PC-23 Optical Aligner Arc Light Source X-Y Stage Isolation Table
Designed for reproducable Optical Mask Aligning in a production environment. Oriel 68810 Mercury Lamp Microelectronics Optics
* Arc Lamp Light Source Assembly for Substrate Stage Illumination w/ 6.25" Lens
* Oriel 68709 Soft-Start Standalone Ignitor
* Oriel 68810 Arc Lamp Power Supply (200-500 Watt Hg) - Input 115V, 50/60 Hz, 10 A
Aerotech ATS 32015-U-40L Precision X-Y Table
* Motor Driven X-Y Stage 12 inch x 12 inch with 6 inch movement
* Compumotor Controlled includes 2 Each Adaptor Box with total 5 Each PC-23 Indexers
* Compumotor CPU Control Computer with PC23 Indexer Card
Isolation Table Heavy Duty
* 48 inch x 42 inch x 24 inch (high)
* We have Four of these total, two of which are complete - parts may vary between them. The systems can be used for their intended purpose of masking-exposing wafers or can be a parts unit or platform including complete Oriel Arc Light Source, Precision Motorized X-Y Stage and a Heavy-Duty Isolation Table.
