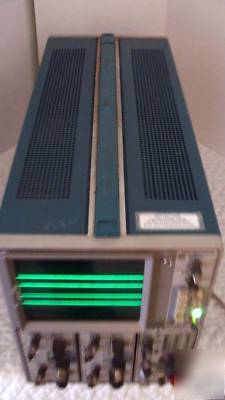

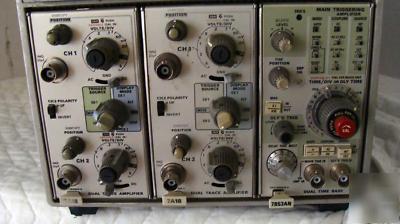

Tektronix 7603 mainframe oscilloscope w/plug ins

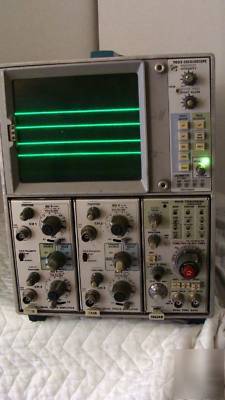

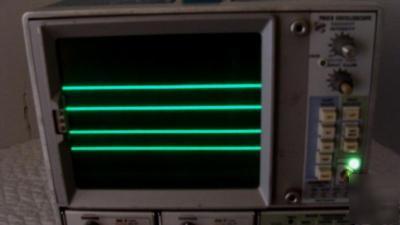

This scope does not have the readout on the screen.
This scope has a big screen with no big readout. VERTICAL SYSTEM - *Channels: Two left-hand plug-in compartments; compatible with all 7000 Series Plug-Ins. Bandwidth determined by mainframe and plug-in unit; see Vertical System Specifications Chart. *Modes of Operation: LEFT, ALT, ADD, CHOP, RIGHT *Chopped Mode: Repetition rate is approx. 1 MHz. *Delay Line: Permits viewing leading edge of displayed waveform HORIZONTAL SYSTEM - *Channels: One right-hand plug-in compartment; compatible with all 7000 Series Plug-ins. *Fastest Calibrated Sweep Rate: 5 ns/div *X-Y Mode: The phase shift between vertical and horizontal channels is within 2 from dc to 35 kHz. Bandwidth is dc to at least 2 MHz. *CRT AND DISPLAY FEATURES - *Standard: Internal 8 X 10 cm div (1.22 cm/div) graticule with variable illumination. Accelerating potential is 15 kV with P31 Phosphor. OUTPUTS/INPUTS - *+Sawtooth: Sawtooth starts 1 V or less from ground (into 1 MW). Output R is 950 W. Output voltage is 1 V/div ( 10%) into 1 MW, 50 mV/div ( 15%) into 50 W. *+Gate: Positive pulse of the same duration and coincident with sweep. Output R is 950 W. Output voltage is 10 V ( 10%) into 1 MW, into 50 W. Rise time is 20 ns or less into 50 W. Source is selectable from Main, Delay, or Auxiliary Gate. *Sig Out: Selected by TRIGGER SOURCE switch. Output voltage is 0.5 V/div into 1 MW, 25 mV/div into 50 W. Output R is 950 W. Bandwidth depends upon vertical plug-in; see Vertical System Specifications Chart. *External Single-sweep Reset: Ground closure, rear panel BNC provides input to reset sweep. *Single-sweep Ready Indicator: Rear panel BNC provides 5 V for single-sweep ready condition. It is set up for 4 channels and 2 sweeps.
For more information: http://w140.com/kurt/tektronix_new_products_july_1972.pdf
Reasonable offers our welcome! REASONABLE ONES!
