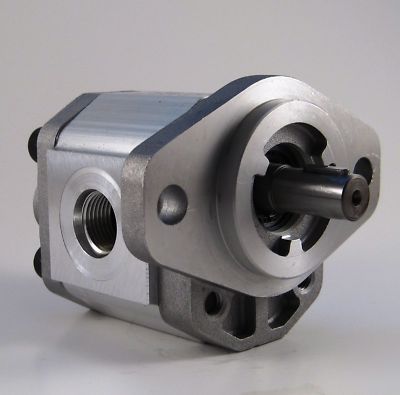

Hydraulic gear pump : 4 cc/rev., sae aa, 1/2" shaft-key
* Flow Rate @ 1800 RPM: 1.72 GPM (=6.5LPM) / @ 2600 RPM: 2.49 GPM (=9.4LPM)
* Rated Working Pressure: 3,000 psi / Intermittent Pressure : 3,300 psi
* Input Port Size: SAE 8 (=3/4-16 UNF-2B) / Output Port Size : SAE 6 (=9/16-18 UNF-2B)
* Rotation : CW (Clockwise looking at the shaft end, R)
Product Description Compact and lightweight aluminum gear pump featuring 12 tooth low noise and low ripple gear design. All parts are manufactured in the ISO certified state-of-art-facility in Korea. This high quality gear pump is used by world-class original equipment manufacturers. 3 things to check to ensure proper installation(1) Mount : Make sure that it is SAE AA 2 bolt type flange(2) Shaft : 1/2" diameter with a SAE square key 1/8 x 5/8(3) Rotation : CW (Clockwise looking at the shaft end, R) Rotation is reversible if you have basic skill to disassemble and assemble the pump.
