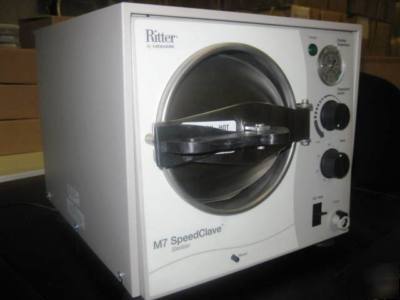

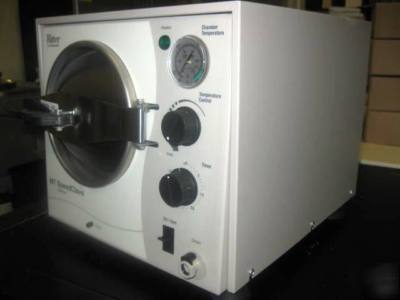

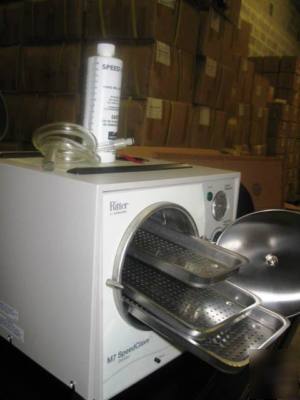

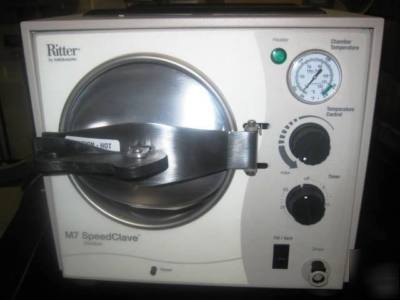

Midmark M7 self-containe steam autoclave dental medical


DENTAL MEDICAL VETERINARY TATOO STORE SPA SALOON
The fastest and most efficient autoclave available!
At only 11 1/2 minutes from a cold start, you won t find a faster conventional autoclave
Starting hot, the M7 sterilizes unwrapped instruments in just 9 minutes!
And, with constant improvements and new technology, the M7 s reliability just keeps
It meets U.L. 61010A-1 requirements.
This self-contained unit sterilizes wrapped or unwrapped instruments, linen packs and
No plumbing is required as the M7 has its own reservoir for distilled or demineralized water.

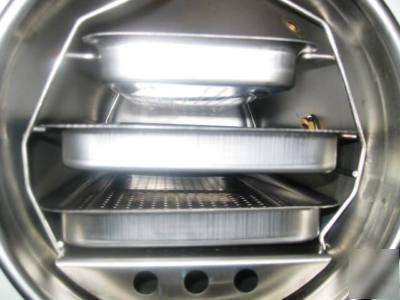

For added convenience, we ve included three corrosion-resistant, stainless steel trays.
It s also economically priced, making it not only the best, but the best product for your
Low water cut-out switch prevents dry burning . The M7 will operate only when there is enough water
present, which prolongs the life of the heating element.
A pilot light is on when the heater is on and rotates off and on during normal cycle.
It restores operation after the cut-out switch is tripped and you have added water.
The cycle timer regulates steam time from 0 to 30 minutes and automatically turns the M7 off when
the sterilization cycle is complete.
This prevents over-sterilization thus extending the service life of your instruments.
A safety door protects the operator.
It automatically seals when pressurized and will not allow the operator to open the door until the
chamber is safely depressurized.
The temperature regulator allows the operator to preset the temperature at a desired setting between
250 F (121 C) and 270 F (132 C).
This control, acting as a thermostat, cycles the heating element on and off.
Indicates the temperature inside the chamber.
The gauge is graduated in two-degree increments
from 80 F (26.7 C) to 270 F (132 C).
With our front draining feature, it s easy to clean and maintain. All controls and information are on
the front and easily accessible to the operator.
Overall length w/plug: 19" (48.3 cm)
Countertop area (minimum depth): 16.5" (41.9 cm)
Chamber: 7.5" diameter (19.1 cm), 15" depth (38.1 cm)
2.4 gal. usable volume (9.0 liters)
Trays: Two large 5.62" W x 12" L x .88" D
One small 4.12" W x 12" L x .88" D
Unit weight: 30 lbs. (13.6 kg)
Water reservoir capacity: 1.31 gal. (4.9 liters)
Electrical requirements: 115 VAC, 60 Hz, 10 Amps Single Phase
115 VAC has 1136 watt tubular immersion heater
230 VAC, 50 Hz, 5 Amps Single Phase
UL Listed to U.S., Canadian, and International safety standards
CAN/CSA C22.2 No. 1010.2-041 96
A separate (dedicated) circuit is recommended for this sterilizer
Installation: Use on moisture and heat resistant surfaces. Allow 2.5" (6.4 cm)
on sides and rear, and 12" (30.5 cm) above, to allow space to fill reservoir
and for cooling processed trays.
THIS EQUIPMENT IS LISTED OVER $1700
AND WILL NOT BE SOLD FOR $500, $800 OR $1500,
DENTAL MEDICO VETERINARIO TATUAJES SPA SALON DE BELLEZA
rea m nima de la superficie necesaria para la instalaci n (profundidad m nima):
19,1 cm (7,5 pulg) de di metro, 38,1 cm (15 pulg) de profundidadCapacidad utilizable de 9,0 litros (2,4 gal)
Dos grandes 14,3 cm de ancho x 30,5 cm de largo x 2,2 cm de profundidad (5,62 pulg x 12 pulg x 0,88 pulg)
Una peque a 10,5 cm de ancho x 30,5 cm de largo x 2,2 cm de profundidad (4,12 pulg x 12 pulg x 0,88 pulg)
Capacidad del dep sito de agua:
115 VCC, 60 Hz, 10 amperios, monof sica
El modelo de 115 VCC tiene un calentador de inmersi n tubular de 1.136 vatios
230 VCC, 50 Hz, 5 amperios, monof sica
Incluido en la lista UL para los est ndares de seguridad de Estados Unidos, Canad e internacionales
Se recomienda dedicar un circuito separado para este esterilizador
Utilice una superficie resistente a la humedad y al calor. Deje un espacio libre de 6,4 cm (2,5 pulg) a los lados y en la parte trasera, y de 30,5 cm (12 pulg) en la parte superior, para permitir el llenado del dep sito y el enfriamiento de las bandejas procesadas.
