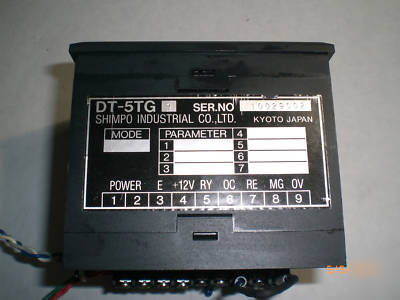

Shimpo dt-5TG-1 microprocessor tachometer plus
Manufacturer: SHIMPO Stock #: 2010050033
Model: DT-5TG-1 With Instruction / Wiring / Operating Manual
* Advanced microprocessor-controlled digital panel mount tachometer. (A complete tachometer instrument, not just a tachometer display).
* Shimpo's DT-5TG is a mulit-purpose instrument capable of displaying not only RPM ,but rotational, linear and flow rates, elapsed time, ratio, and other units.
* The DT-5TG acdcepts a variety of modules enabling it to perform different output functions such as 0-10vdc, 4-20ma, relay closure, RS232C, etc.
* The DT-5TG-1 will accept the following modules (not included): DOP-FV voltage current output, DOP-CP triple relay output, DOP-SD RS232C Mitutoyo output, and the DOP-BC BCD output modules.
* Fully scalable and highly accurate.
* Includes internal 12vdc sensor power supply.

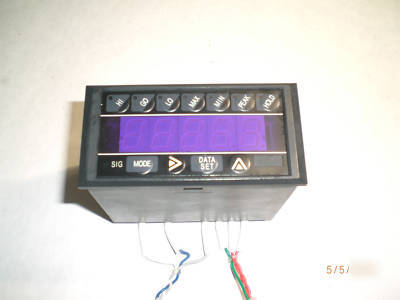

* 5 digit display with 5 different decimal point settings.
* 10-99,999 RPM (at 1p/r) or 0.2-30,000 RPM (at 60 p/r).
* Number of pulses per revolution is programmable 1 to 9,999 allowing the use of almost any sensor.
* Accepts sine wave inputs from 0.3-30v p-p at up to 10kHz or digital square wave input lo=0-1.5v hi=4-30v at up to 30kHz, or contact closures within the voltage range at up to 20Hz.
* Sensor voltage range is 9-35 vdc.

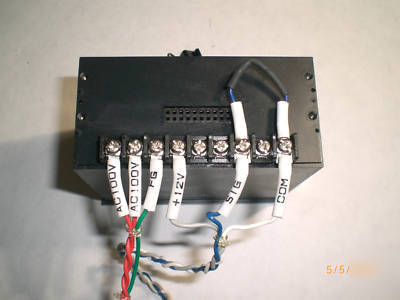

Condition: Used, excellent condition. Fully functional and tested as follows: power on, full diagnostic self test, and tested with a 12v rotary pulse generator. Additional testing available. Please call for quote.
Returns: Guaranteed good or money back in 7 days.
