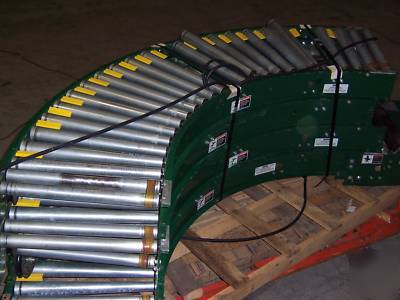

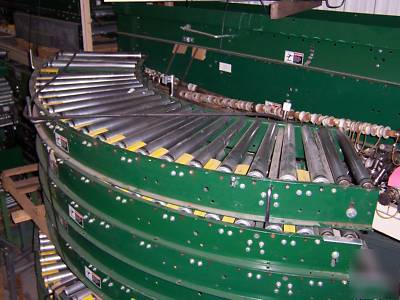

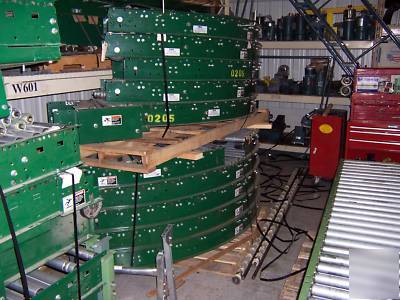

Rapistan model #996 round belt driven live roller curve
Rapistan Round Belt Live Roller Curves. 24 1/4" Wide x 90 Degrees
Operation: Two way or single direction Horizontal Curves
Capacity: 50 # per ft. or 500 # distributed load.
Speed: Will Set to your desired speed from 20 - 120 feet per minute
Drives: End Drive. Power transmitted to round belt through a 5 3/4" outside diameter cast iron sheave
Motor & Reducer: 3/4 h.p. C Face
Belt: 9/16" Diameter Round Belt
Bed: 10 Gauge, 6 1/4" Deep w/ 1 1/8" Flanges, Painted, Welded Construction

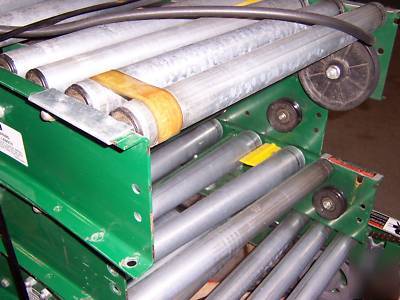

Rollers: Curved Portions have 14 Ga., Tapered, Steel Tubing w/ 7/16" Hex Axles
1 5/8" Small end / 2 1/2" O.D. at Large End / / Straight Rollers are 16ga. w/ 7/16" Hex Axles
Pressure Sheaves: 2 3/4" Outside - Diameter Plastic with Lubed for Life Bearings.
Guard rail: 2" Adjustable Channel Provided
Drive: 18" Straight Section Drive / Usually at Infeed End
Supports: Rapistan R1400 Supports Included Adjustable from 17" to 25" Top of Support Height.
