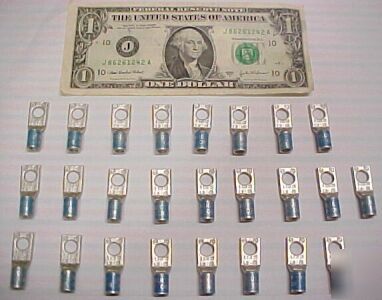

Lot 25 burndy t&b #6 awg copper cable lugs, electrical
These are nice lugs, and they seem heavier than necessary for a #6 AWG wire. Lineage Power makes a lot of power equipment for big telecom companies, so they probably make things extra sturdy for reliability and safety reasons. After all, the last thing you want to see is smoke pouring out of a multi-million dollar server array because somebody used cheap lugs!
Writing on the box, in relevant part:
Die No./(Crimps): USCR7 (1) 15522 (1)
WIRE SIZE: #6 AWG CU. #6 FLEX CU.
Barrel outside diameter: .316"
The WP91412 Connectors are one-hole or two-hole, tubular compression-type terminators. They are intended for use with copper power wire. They can be used with flexible power wires classified as Class I stranding and standard Class B stranding.
The connectors are fabricated using seamless, electrolytic wrought copper for excellent conductivity and reliability; electro-tin plating helps preserve connector integrity and also prevents corrosion. In addition, the connectors are specified for extra margins of safety to minimize the risk of overheating.
Intended for use in power equipment and central office power system installations, WP91412 Connectors are designed to be installed using UL- or CSA-approved compression tools and dies (as necessary). The economical, standard length barrel is ideal for space-restrictive applications. To help reduce the incidence of errors and ensure proper installation, a color-coding scheme matches terminal and die sets to provide the correct number and location of crimps. Color-coded barrels are matched with Class I and Class B stranding, which are UL-listed with tooling, as indicated by the specification.
- Central office installations
- Provides highly reliable electromechanical connections for high-energy applications
- Minimizes the risk of overheating
- Designed for fast, simplified, error-free installation
- Ensures high quality through strict testing and qualification procedures
- Meets applicable Telcordia requirements
- UL-listed with Lineage Power KS power wires for Class I stranding and standard Class B stranding
- Suited for limited-space applications
- Compatible with UL- or CSA-approved crimp compression tools
- UL-listed with tooling identified in the power data sheets of the WP91412 specification
- Narrow tongue feature available in some sizes
- Accurate color coding scheme
- Corrosion-resistant, electro-tin plating
- Exceeds commercial and UL requirements
- Seamless, electrolytic wrought copper construction
- UL listed with tooling identified in the WP91412 Specifications
(12 to 14) lots: Five pounds
