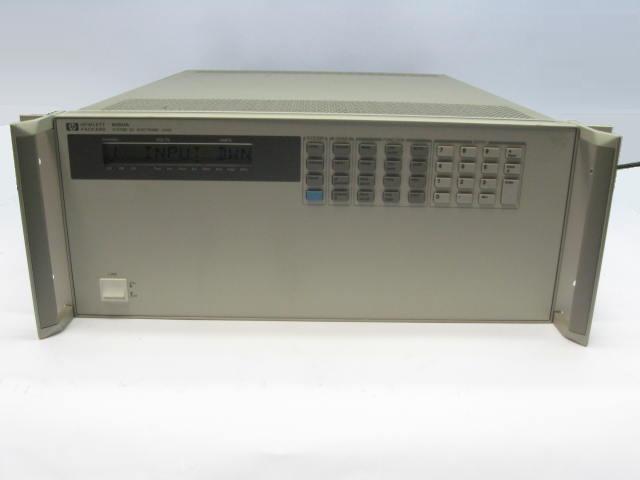

Hp 6050A system dc load electronic load
The 6050A electronic load mainframe accepts the user-installable load modules for easy system configuration and future reconfiguration. The 6050A holds up to six 60501B, 60502B, and 60503B load modules, or three 60504B and 60507B load modules, allowing up to 1,800 watts of total maximum power. One GPIB address is all you need for complete control and readback of all load modules within a single mainframe.
* GPIB control of current, voltage and resistance
* GPIB readback of current, voltage and power
* Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle and slew rate
* Continuous and pulse modes
* Full protection from overcurrent, overvoltage, overpower, overtemperature, and reverse polarity
* Trigger for external synchronization
* Analog voltage control in constant current mode
* Parallel units in constant current mode for higher power
* Remote voltage sense in constant voltage mode
