Agilent hp 85902A burst carrier trigger/preamp

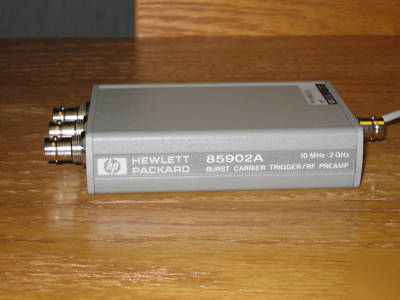

HP AGILENT 85902A BURST CARRIER TRIGGER RF PREAMP
This is used for performing transmitter tests, it provides a TTL time reference that allows an 8590 A/E-series or 8560 EC-series spectrum analyzer to trigger reliably off the RF signal. It has an input range of 60 dB and a separate built-in preamplifier for greater sensitivity. The 85902 A works with all digital communication formats: NADC-TDMA, E-TDMA, PDC, GSM900, DCS-1800, PCS1900, CT2-CAI, DECT, and PHS. It has a frequency range of 10 to 2000 MHz.
Burst Carrier Trigger/RF Preamp
Take the misery out of performing transmitter tests such as power versus time and adjacent channel power. No longer do you need to search for a timing signal or waste your efforts on homemade trigger circuits. Never again will you have to wire into your radio-under-test. The 85902A burst carrier trigger provides a TTL timing reference that allows your spectrum analyzer to reliably trigger directly off the RF signal when performing transmitter tests. With an input range of 60dB and a separate built-in preamplifier for greater sensitivity, you have the ability to trigger on a wide range of transmitter power levels. Simplify your test setup Rugged, reliable and repeatable Works with all digital communication formats.
Frequency Range: 10MHz to 2GHz
Burst Preamplifier Frequency Range: 10MHz to 2GHz
Gain Versus Frequency, 10 to 350MHz: >18dB
Gain Versus Frequency, 350 to 1GHz: >16 dB
Gain Versus Frequency, 1 to 2GHz: >12 dB
This is used for performing transmitter test, it provides a TTL time reference that allows an 8590 A/E-series or 8506 EC-series spectrum analyzer to trigger reliably off the RF signal. It has an input range of 60dB and a separate built-in preamplifier for greater sensitivity. The 85902A works with all digital communication formats: NADC-TDMA, E-TDMA, PDC, GSM900, DCS-1800, PCS1900, CT2-CAI, DECT and PHS. It has a frequency range of 10 MHz to 2GHz.
click here to see more photosPhotobucket Photobucket
