Parker mv-8-66164-1 manual ptfe sampling valve

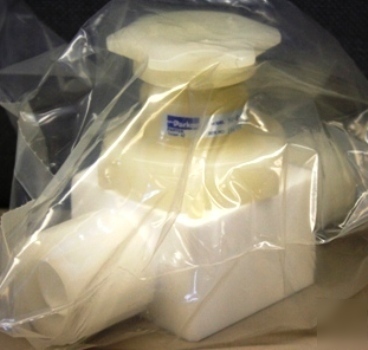

Parker MV-8-66164-1 Manual PTFE Sampling Valve
$698.54 each (OEM 06/08/09 MQF)
BRAND NEW! FACTORY SEALED BOX!
* One piece precision machined diaphragm manufactured from the latest technology modified PTFE, provides over five times the flexural life as compared to conventional PTFE.
* Higher cycle life resulting in less downtime and lower replacement costs.
* Allows system maintenance downstream of valve without disrupting main flow.
The MV-8 Sampling Valve is designed for use in high purity semiconductor applications, and is also ideally suited for ultra-pure water or aggressive chemicals. The design utilizes a machined PTFE body with precision machined seat and diaphragm sealing areas. A one piece machined modified PTFE diaphragm is also utilized for excellent flexibility and life. The valve incorporates a full flow through port with a low dead volume down leg. The purge port option makes this the valve of choice for valve manifold boxes and distribution systems.
* Materials of Construction: Wetted Surfaces - PTFE, Modified PTFE ; Non Wetted Surfaces PVDF
* Pressure Ranges: 27 Hg vacuum (913 mbar) to 120 PSIG (8.3 bar); Pressure ranges above are for operation at ambient temperature
* Temperature Ranges: 0 - 212 F (-17 -100 C); Ambient: 0 - 400 F (-17 - 204 C) Fluid
* Sampling Port: Parflare
* Through Port: 1 Parflare
* Through Port: Cv: 37.3; Kv: 532.6
* Sampling Port: Cv: 0.2; Kv: 2.8
