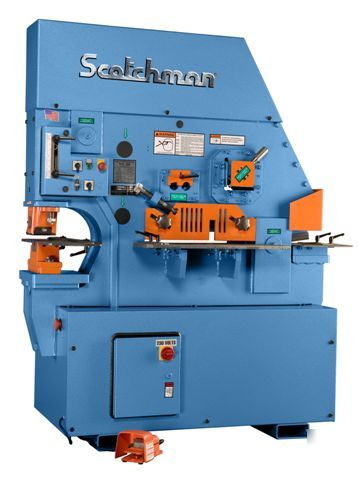

New 85 ton scotchman fi 8510-20M ironworker, 5 stations
85 Ton Scotchman FI 8510-20M NEW IRONWORKER, 5 Stations
85 Ton Scotchman FI 8510-20M NEW IRONWORKER, 5 Stations - Extremely Versatile
85 Ton Punch Station (1-1/16" in 1")
Die Holder Complete with 2" Die Insert
Adjustable Swing-Away Stripper
One Round Punch & Die: Max. Dia. 1-1/4"
Adjustable Electric Stroke Control with Scale
Angle Shear Capacity 6" x 6" x 1/2"
20" Flat Bar Shear with 4-Way Reversible Blade (1" x 12", 3/4" x 20")
Rod Shear Capacity 1-3/8" Round, 1-1/4" Square
Rectangle Notcher Capacity 3" x 5" x 1/2"
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 Volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with ANSI B 11-5 Standards
Rated On: 65,000 PSI Tensile - A 36 Mild Steel
Punching Capacity: 85 Ton, 1-1/16 in 1"
Flat Bar Shear: 20 Length, 1" x 12", 3/4" x 20"
Angle Shear 90 Degrees: 6 x 6 x 1/2
Angle Shear 45 Degrees: 4 x 4 x 1/2
Open End Brake: Max 1/4" x 6" Flat or Angle Iron
Pipe Notcher Schedule 40 ID: , 1 , 1-1/4 , 1-1/2 , 2
Rectangle Notcher: 2 x 2-1/2" x 3/8
90 Deg. V. Notcher: 6 x 6 x 5/16
Notcher Rectangle: 3" x 5" x 1/2"
Square Tube Shear: to 2 , 14 ga.
Offset Die Holder: Max. 40 Ton
SPM - Light Material: Stroke
SPM - Heavy Material: Stroke
Motor Standard: 5 hp, 3 ph, 230/460/208/380/575
Motor Optional: 5 hp, 1 ph, 230 V
Dimensions: 30 W x 67 L x 77 H
