> Mtech digital readout +3 scale - mill milling lathe dro
Mtech digital readout +3 scale - mill milling lathe dro
FREE #1 - DRO installation Visual Guide Manual
with 79 pages of photos of step-by-step guide, you will never go wrong.
Learn how the expert do it and learn the trick of the trade.
We have both Installation manual for both MILLING machine and LATHE machine.
Why wait 9~14 working days ? You can have your DRO fly to you in 1~3 working days. Get your DRO faster, with point-to-point tracking and hassle-free clearance.
We put them in Photo, so you can be sure you get the BEST !! NO DOUBTS !!
Choose DRO3M(Milling model) or DRO2L2(lathe model)
4) English DRO Setup and Operation manual
5) Screws, ground cable and DRO Dust Cover
7) 3 piece of mTECH High Precision Glass scale with protective cover
(You can choose your preferred measuring length from 50mm ~ 920mm (2"~36"))
8) All necessary mounting bracket, screws, cable ties, blocks, shim, cable holder
(Everything is included, so you do not waste time)
2. WHAT LENGHT OF GLASS SCALE ARE AVAILABLE ??
Glass Scales are available in these travel/measuring length:
Metric: 50, 120, 170, 220, 270, 320, 370, 420, 470, 520, 620, 750, 820, 920mm.
Inches: 2, 4.7, 6.7, 8.7, 10.6, 12.6, 14.6, 16.5, 18.5, 20.5, 24.5, 29.5, 32.3, 36.2inches.
(Physical Length/Overall Length is 142 mm (5.6") longer)
You can CHOOSE ANY 3 PIECE OF GLASS SCALE FROM THE ABOVE.
Our Factory also make scales up to 3000mm, 120".
Here are some common scales for these standard machine:

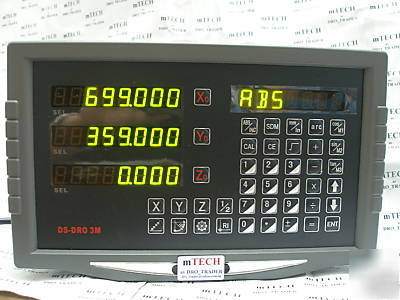

3. WHAT ARE THE PHYSICAL FEATURES OF THE DIGITAL READOUT ??
~Membrane Seal diaphragm touch keys (Water/Coolant/Dust Proof)
~3x 7-Segment Green LED Display Windows
4. WHAT ARE THE ELECTRICAL FEATURES OF THE DIGITAL READOUT ??
~Power Supply Voltage: AC 100V ~ 230 V, 50 Hz ~ 60 Hz (Automatic Detection)
~Input signal: TTL square wave.
~Frequency multiplication: 4x.
~Input signal frequency: >100KHz.
5. WHAT ARE THE OPERATION FEATURES OF THE DIGITAL READOUT ??
YOU CAN CHOOSE EITHER DRO-3M (MILLING DRO) OR DRO-2L2 (LATHE DRO)
~200 work piece zero position memory
~Drilling hole in a oblique line
~Linear error compensation function
6. WHAT ARE THE FEATURES OF THE HIGH PRECISION GLASS SCALE ??
~Resolution : 5um (0.005mm).0002 inch
~Grating pitch: 0.02mm (50LP/min)
~Accuracy: 0.005 mm or 0.0002" (at 20 deg C)
~Reference marks at interval of 50mm
~Response Speed: 60m/min or 40ins/sec
~Cable length: Armoured 3 Meter (about 9 feet)
THESE ARE HIGH QUALITY SCALES THAT HAVE BEEN CHECKED BY LASER !!!
Slim Scales (Model JCXF ) - Normally used for Lathe Cross-slide ( measure up to 370mm, 14.5")
Standard Scales (Model JCXE) - Used for Z-axis on Lathe and Milling machine ( measure up to 1020mm, 40.1")
Long Scales (Model JCXG) - Used for Big machine with extended length ( measure up to 6000mm, 236")
~ Telegraphic Transfer/Remittances
Why wait 9~14 working days ? You can have your DRO fly to you in 2~5 working days. Get your DRO faster, with point-to-point tracking and hassle-free clearance.
9. WHAT WARRANTY IS GIVEN FOR THIS SYSTEM ??
~1 year INTERNATIONAL WARRANTY
We are so SURE you will like it and improve your work efficiency and accuracy that we gladly offer you 30 days NO QUESTIONS ASKED return privilege.
11. Sample Photos of mTECH DRO installation
RF31 milling machine by Al Betzwieser (USA)
Harbor Freight HF 40576 14x40 lathe. by Ed Boysun (USA)
Birmingham lathe from John Stanke (USA)
Bridgeport Milling Machine from David Ralston (UK)
Harrison L5A (1961) from Ross Crymble (UK)
mTECH Scales used wit Fagor NV DRO
Bridgeport milling machine - Aaron Nelson (USA)
Harbor Freight Milling machine : ZAY7032G - Mike Deines (USA)
1) Do you need the Milling or Lathe DRO ?
2) What is the measuring length of the scales?
