> Panduit FJJGM5CBL duplex fiber optic jack module qn=10

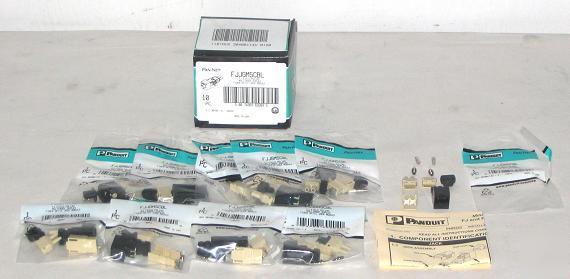

Panduit FJJGM5CBL duplex fiber optic jack module qn=10
PANDUIT FJJGM5CBL DUPLEX FIBER OPTIC JACK MODULE QN=10
* TIA/EIA-604 FOCIS-6 compliant connectors
Exceed TIA/EIA-568-B.3 requirements
Insertion loss: 0.1dB average (multimode), 0.2dB average (singlemode)
Return loss: >20dB (multimode), >40dB (singlemode)
RJ45 small form factor duplex jack module - double the port density in one module space
Non-optical disconnect maintains data transmission under tensile loads for jacketed cable
Mini-Com Jack Modules snap in and out of all Mini-Com telecommunications room products and work area outlets
Each duplex jack module includes housing, cover, two ferrule assemblies, two crimp sleeves, one boot for 900 m buffered fiber, one boot for 3mm jacketed cable and one dust cap
Can be clearly identified with labels and icons
Fiber cable type: tight-buffered recommended
Fiber cable size: accept 900 m buffered fiber, 3.0mm jacketed cable or 1.6mm 2.0mm jacketed cable (noted in part description)
For 250 m coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits
Ferrule type: 2.5mm zirconia ceramic (highest durability for repeated matings)
Field polish termination - PANDUIT recommends anaerobic adhesive
Use field polish termination kit (FJKITG)
FJ Multimode Duplex Fiber Optic Jack Module with phosphor bronze split sleeves for 3.0mm jacketed cable or 900 m buffered fiber installation.
FJ Jack Module Multimode for 3mm Jacketed Cable or 900 m Buffered Fiber BL
Product: FIBER OPTIC JACK MODULE
