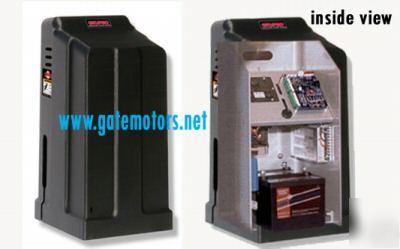

Gto pro gp SL100 commercial duty slide gate operator
GTO's Commercial Gate Operator Model GP-SL100 is designed for continuous duty operation of slide gates. Max Gate; Weight 1200 lbs. (544.3 kg), Length 37 ft. (11.3 m) with a 32 ft. (9.8 m) opening. Assumes gate to be free sliding in good working condition on a level plane.
Available while supplies last!
* Continuous duty gate operation and all DC powered counters/safety devices
* 120 VAC 60 Hz built in power receptacles (1 amp rated)
* 25:1 direct drive worm gear with totally enclosed gear reduction
* 2500 RPM, 24V brushless DC motor - 1/2 HP equivalent
* Operating temp 5 F to 160 F
* Non back-drive gearbox with ball bearing output shaft
* 12" per second maximum travel speed
* Weatherproof high density ABS, UV resistant cover
* GTO/PRO's advanced technology commercial control board
-> Digital/optical limits with fine adjustment JOG push buttons for easy and accurate setting of limits
-> 100% solid-state motor controls circuitry
-> APS (Absolute Position System) tracking system
-> On board 3-push button control station
* Operation, diagnostic and safety alarms, reverse sensor system
* Visual LED and audible diagnostic indicators
* Plug-in loop detector inputs for exit, shadow and safety loops
* Smooth start/smooth stop - for long mechanical life expectancy
* Built in power management system utilizing a high efficiency switchmode power supply. (AC power supply, audible and visual low battery indicators, no loss of functionality in battery back up mode)
* Auto close adjustable 3 - 120 seconds delay
* Fail Safe or Fail Secure DIP switch selectable for low battery operation
* 12 VDC, 300mA, poly fuse protected auxiliary power output
* Dimensions are 27" high x 18" deep x 15" wide
* Manufacturer's 2 year warranty
* System certified with UL325 5th Edition safety standards, ETL listed
* Dual gate capable via communication link wires (14 - 20 gauge multi stranded 2-wire shielded)
* Battery back-up requires two 12 VDC, U1, 230 Amp Lead Acid Batteries, typical lawn and tractor batteries, not included.
* Transmitter and receiver not included, sold separately below.
* GTO/PRO AC Powered Gate Operator Limited Warranty:
Residential Installation - 5 years for mechanical parts; 3 years for electronics
Commercial Installation - 3 years for mechanical parts; 2 years for electronics
Call for Available Accessories:
* Driveway Vehicle Sensor (Exit Wand) - (50' - 250' lengths)
* Wireless Intercom with integrated Keypad
