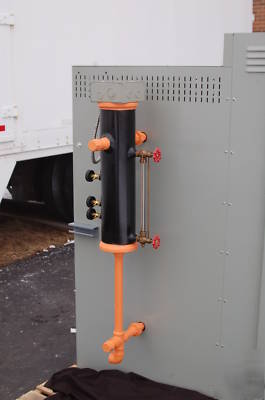

Sussman electric steam boiler SVS252

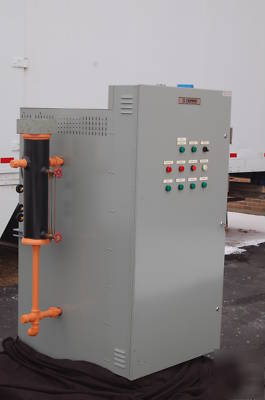

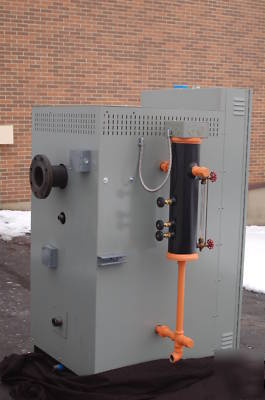

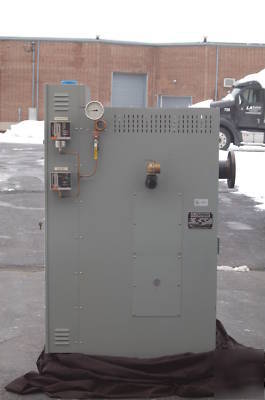

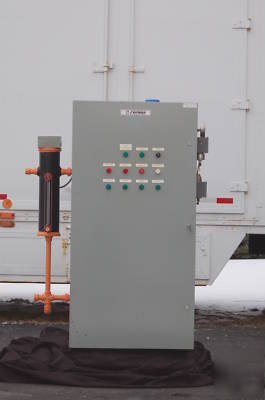

Your looking at a like new Sussman Steam Boiler. You will not find a better taken care of used boiler, annual preventative maintenance.
Many options added to this boiler, lights, ameter, volt meter.
* INSULATED ASME CODED AND STAMPED STEEL, PRESSURE VESSEL CODE S, SECT. I, 150PSIG
* BUILT TO UL, NATIONAL BOARD REQUIREMENTS
* STANDARD 150PSIG DESIGN - HIGHER PRESSURE AVAILABLE
* FULLY INSULATED VESSEL, 2" THICK INSULATION
* NPT INLET/OUTLET FITTINGS UP TO 3 1/2", FLANGED INLET/OUTLET FITTINGS FOR 4" AND OVER. (SEE SPECIFICATION CHART)
* VERTICALLY MOUNTED INCOLOY SHEATHED IMMERSION ELEMENTS COMPLETE WITH EPOXY END SEAL

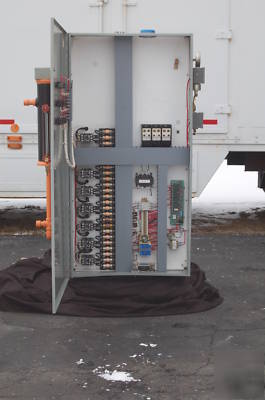

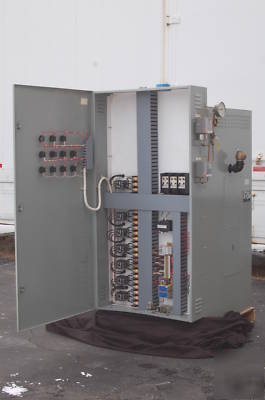

* NEMA 1, EPOXY FINISHED GASKETED/LOUVERED CONTROL PANEL AND HEATER ENCLOSURE

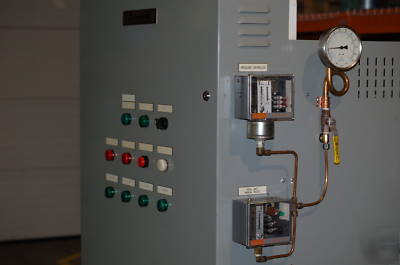

* PRESSURE GAUGE WITH ISOLATING STOPCOCK
* LIQUID LEVEL GAUGE GLASS ASSEMBLY
* BACKFLOW CHECK VALVE AND SOLENOID FEEDWATER VALVE
* STANDARD PRESSURE RANGE 20-150 PSIG (HIGHER PRESSURES MAY BE AVAILABLE UPON REQUEST)
* MODULATING PRESSURE CONTROL (STANDARD OVER 90A)
* ELECTRONIC FEEDWATER CONTROL

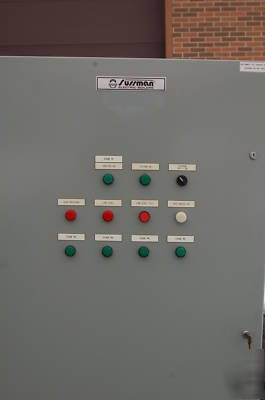

* BOILER OPERATING MODE INDICATOR LIGHTS
* SUB-DIVIDED CIRCUIT FUSING, CLASS "J", HRC FORM 1
* INDUSTRIAL RATED AMGNETIC CONTACTORS
* MANUAL RESET HIGH LIMIT PRESSURE CONTROL
* MAIN & AUXILIARY LOW WATER CUT OFF CONTROLS
* 120V CONTROL CIRCUIT C/W ON/OFF SWITCH AND INDICATING PILOT LIGHT
* 120VAC CONTROL CIRUIT TRANSFORMER WITH PRIMARY & SECONDARY FUSING
* STEAM OUTLET GLOBE VALVE (150 PSIG)
* TIMED AUTOMATIC BLOWDOWN SYSTEMS
* AUXILIARY LOW WATER CUTOFF
* MANUAL RESET LOW WATER CUTOFF
* AUXILIARY HIGH PRESSURE CUTOFF, FOR AUTO OR MANUAL RESET
* AUDIBLE ALARM WITH SILENCER
* PILOT LIGHT FOR EACH HEATING STAGE
* MANUAL OFF/AUTO SWITCH FOR EACH HEATING STAGE
* VOLTMETER, COMPLETE WITH 3 POSITION SELECTOR
* AMMETER W/3 POSITION SELECTOR
* SAFETY DOOR INTERLOCK SWITCH
* MOTOR STARTER WITH OVERLOADS
http:// /svs2.htm
* Other Voltages, KW ratings available
**With 50 feedwater. Output higher with hotter feedwater.
SVS ELECTRIC BOILER SPECIFICATION STANDARD
* Contact factory for weight, dimensions, etc.
Sizing A Sussman Electric Steam Boiler
Use the following Table to determine KW Boiler rating when steam load and feed water temperatures are known.
Example: Need a boiler to produce 450 lbs. steam/hr at 100 psig with the available feedwater temperature 50 F.
From the above chart, find 0.3429 KW/lb. of steam.
450 lbs. steam/hr. X .3429 = 154.3 KW boiler required.
