Vt 100MHZ pc usb oscilloscope, spectrum analyzer, meter
100MHz PC USB Oscilloscope, Spectrum Analyzer, Multimeter, Signal Generator*
with Multi-Instrument 3.2 (Standard) software license
*VT DSO-2810H unit only has a 2Vp-p 1kHz square wave output, much more signal generator functions are available via sound card or other DAC device instead

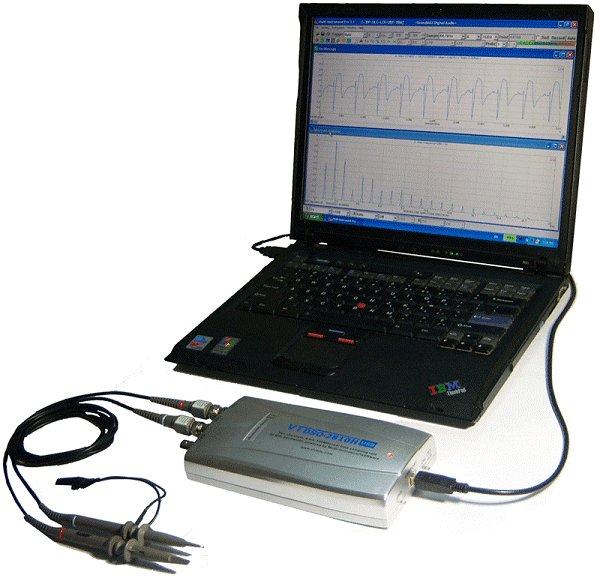

1) VT DSO-2810H unit with a hardware bundled Multi-Instrument Standard software license
2) 2 60MHz Oscilloscope Probe PP-80 with two switchable positions: 1, 10
4) CD (contains the copy-protected Multi-Instrument software and VT DSO-2810H driver)
2. VT DSO-2810H Hardware Specifications
(1) Single Channel, Maximum 60000 Samples*
100MHz, 20MHz, 2MHz, 200kHz, 20kHz
(2) Single or Dual Channels, Maximum 30000 Samples per Channel
50MHz, 25MHz, 10MHz, 5MHz, 2.5MHz, 1MHz, 500kHz, 250kHz, 100kHz, 50kHz, 25kHz, 10kHz, 5kHz
(3) Single or Dual Channels, Maximum 10000 Samples per Channel
(4) Single or Dual Channels, Maximum 500 Samples per Channel, work in Roll Mode**
40mV, 80mV, 200mV, 400mV, 800mV, 2V, 4V, 8V, 20V
300m s~100s (with buffer fully filled)
Adjustable in the range of -4V ~ 4V
Output Signal for Probe Calibration
Device Category in Multi-Instrument
203 mm (L) x 99 mm (W) x 33 mm (H)
Windows 98/ME/2000/XP/Vista/7 or above, 32 bit or 64 bit
*These frequencies (except 100MHz) are not listed in the sampling frequency selection combo box of the Multi-Instrument software. You need to enter the value directly into that combo box and then set the number of sampling channels to single, if you need to use these sampling frequencies.
**Under these sampling frequencies, adjusting the trigger mode, trigger source, trigger edge, trigger level, trigger delay will have no impact on the sampling.
3. Introduction of Multi-Instrument 3.2 (Standard)
Multi-Instrument 3.2 (Standard) is a powerful PC based multi-function virtual instrument software. It supports a variety of hardware ranging from sound cards which are available in almost all computers to proprietary ADC and DAC hardware such as VT DSO-2810F, VT DSO-2810H, VT DSO-2815H, NI DAQmx cards and so on. It consists of a dual trace oscilloscope, a real time spectrum analyzer, a signal generator and a multimeter, and can run them simultaneously.
The software can be downloaded for 21-day fully functional FREE trial using your sound card as the ADC and DAC device at: /MIsetup.exe.
4. Functions of Multi-Instrument 3.2 (Standard Version)
Record Mode: Record data to the hard disk continously until the recording process is stopped manually or 2 gigabytes of data has been recorded, whichever is earlier. During the recording process, acquired data will still be analyzed and displayed to keep the screen updated in real time.
5. License information and Function Allocation in Multi-Instrument Series
6. Extended use of the Multi-Instrument Software
With the VT DSO-2810H unit connected to the computer, the Multi-Instrument software will run under the licensed mode. In Multi-Instrument, the ADC device and DAC device can be independently selected. For example, you can use the VT DSO-2810H as the ADC device and your computer's sound card as the DAC device, and they can work simultaneously. Or, you can use the sound card for both ADC and DAC. Note: the test lead (or probe) for sound card is not included in this pacakge, but you can make the connection by yourself or purchase it from us separately.
Specification for a sound card based system:
PC or Laptop with Microsoft Windows 98 or greater, Microsoft NT or greater, with a USB port. Both 32 bit and 64 bit Windows are supported. Screen horizontal resolution is recommended to be equal to or greater than 1024 pixels.
Software upgrade in the same level is always FREE. When a new version is available, you can just uninstall your current version, download and re-install the new version, as long as the VT DSO-2810H unit is still supported by the new version.
Software upgrade to a higher level can be purchased from our webiste. The software license bundled within the VT DSO-2810H hardware unit is remotely upgradable.
One year warranty against defective materials and manufacutring defects for all hardware parts inside the package.
11. Screenshot Examples and Demo
(1) Measurements of a 500Hz sine wave and a 1kHz square wave under ALT trigger mode
(2) Measurements of PAL Composite Video Signals
