Agilent hp 8508A vector voltmeter 85081B module

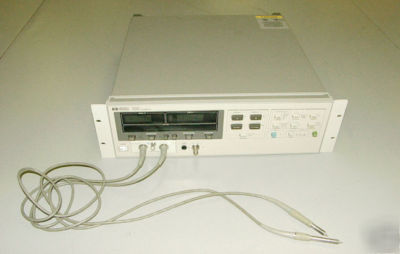

HP\Agilent 8508A Vector Voltmeter w\ 85081B Module
The 8508A Vector Voltmeter is a fully automatic tuned receiver that makes RF voltage and phase measurements easy. Its narrowband measuring technique gives a dynamic range of over 90 dB and a sensitivity of 10 V to trace even the smallest signal. It also measures the phase difference between its two input channels with at least 0.1 degree resolution over a full +180 to -180 degree range, so they can be used for another complete set of measurements - such as electrical length, phase distortion, or impedance. With its ability to store reference and use it in later measurements means individual circuit sections can be characterized and adjusted independently.
* Circuit probing to facilitate the design process
* Easy programming for ATS's
* Narrowband measurement capability for high sensitivity applications
* Frequency range: 100 kHz - 1.0 GHz
* 85081B High impedance input probe module, range 100 kHz to 1 GHz
* Maximum input: 2 V peak ac, 50 Vdc
* A (ref) channel minimum: 10 mV, 100 kHz to 300 kHz 1 mV, 300 kHz to 3 MHz 300 V, 3 MHz to 1.0 GHz
