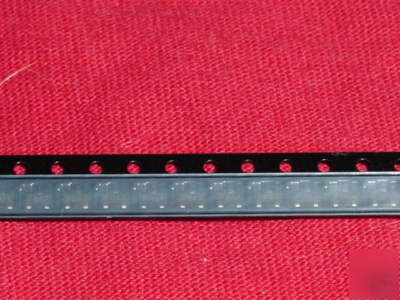

100 pcs. maxim# MAX6328UR23-t, 3-pin, ultra-low-power s
The following item has just been added to our store in a larger qty. This item is for 100 pcs. only!
Check our store for larger qty and 1000's of other components!
Check out my other items! <-Click here!
"If this is not the qty you are looking for, let us know and we will make the qty for you!"
3-Pin, Ultra-Low-Power SC70/SOT P Reset Circuits
The MAX6326/MAX6327/MAX6328/MAX6346/MAX6347/
MAX6348 microprocessor ( P) supervisory circuits monitor
the power supplies in P and digital systems. These
devices provide excellent circuit reliability and low cost
by eliminating external components and adjustments
when used with 2.5V, 3V, 3.3V, and 5V powered circuits.
These circuits perform a single function: they assert a
below a preset threshold, keeping it asserted for at least
CC has risen above the reset threshold.
The only difference between the devices is their output.
The MAX6326/MAX6346 (push-pull) and MAX6328/
MAX6348 (open-drain) have an active-low reset output.
The MAX6327/MAX6347 have an active-high push-pull
reset output. All of these parts are guaranteed to be in
CC down to 1V. The reset comparator
is designed to ignore fast transients on V
thresholds are factory-trimmable between 2.2V and
4.63V, in approximately 100mV increments. Twenty-one
standard versions are available. Contact the factory for
availability of nonstandard versions.
Ultra-Low 1 A (max) Supply Current
Precision Monitoring of 2.5V, 3V, 3.3V, and 5V
Reset Thresholds Available from 2.2V to 4.63V
Fully Specified Over Temperature
100ms (min) Power-On Reset Pulse Width
Available in Three Versions: Push-Pull RESET,
Push-Pull RESET, and Open-Drain
Power-Supply Transient Immunity
Pin Compatible with MAX803/MAX809/MAX810
