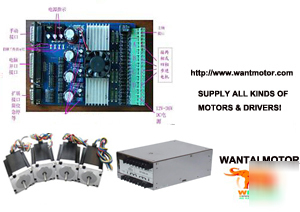

4 axis nema 23 stepper motor 270OZ-in& driver board cnc
4 PCS Nema 23 Stepper Motors with 270oz-in holding torque,
1 PC 4 Axis Control Board TB6560;
Holding torque: 13.5Kg-cm 191oz-in , with unipolar (For Bipolar connecting, the holding torque is 270oz-in)
Please tell us if you need Double shaft or single shaft, we can manufacture both for you. If you need Double shaft, please tell us your requirements for length of front and rear shaft, as well as the diameter. So that we can offer you the quite good products, thanks!
NEW* 4 Axis TB6560 Stepper Motor Driver Controller
Aerospace TB4-axis drive board HY-TB4DV-N Instructions
Thank you for choosing our products better and faster operational numerical control for you, please read this manual
1 Integrated SCM manual control system, you can directly from the computer manual
2 The maximum 3.5A drive current to a maximum 86 stepper motor drives, more powerful
3 1-16 sub-setting, higher accuracy, smoother operation
4 Overload over-current over-temperature protection, full protection of your computer and peripheral equipment
5 4 files current settings can be set according to the user the actual current requirement
6 Full closed-type optical isolation to protect the user's computer and equipment
7 Professional design, two-stage signal processing, super anti-jamming
8: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region
9: 2-way output control, scalable fifth axis or 2-way control of external equipment.
10: Four input control, you can set limit, emergency stop, which is divided into pairs of knives.
Double-pole constant flow PWM actuation output.
Actuates the electrical machinery
42,57,86 step-by-step the electrical machinery, 2 - 4 (4 6 8 step-by-step electrical machinery)
Power output interface function
Please note the following before the test items
1 To determine the size of the supply voltage and current
2 Determine the stepper motor power and current (model)
3 Determine the stepper motor wiring
4 Power Please take 12 ~ 36V 8A (stepper motor in accordance with the work of current matching) The above switching power supply, I received a map indicating the power input interface
12V power output for a 12V cooling fan to pick up where
The definition of 1-PIN 25 of Parallel Interface is described as follows
The definition of 1-PIN15 of Manual Interface is described as follow Click the image to upper right for the P1 left P15
AC input range selected by switch.
Protections:short circuit/overload/over voltage/over temperature
Setup,rise,hold up time: 200ms,50ms,20ms/230VAC at full load
Our products are mainly used in robotization, Spinning Automatization, Printing, Packing, Medica Machine, Make-up Equipment, Communication, Household Appliance, Water Pump, Milling Machine, Engraver Machine, CNC Routers.. etc automatic equipment of various trades.
Please join us, let s create the glorious future together!
You can add my MSN: jolie1985love@live.cn or Skpye: shenkeyun2
Wantai Electrical Appliance Co., Ltd
