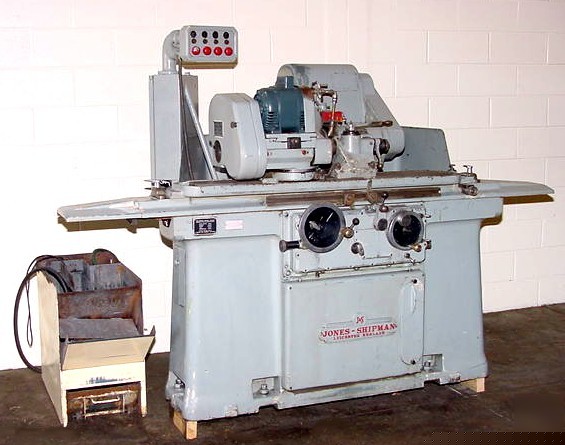

10" swg 27" cc jones & shipman 1300 od grinder, swg aro
MODEL: 1300-EIU S/N: 47182 NEW: 1955
MAXIMUM SWING .................................... 10"
DISTANCE BETWEEN CENTERS .......................... 27"
TABLE SWIVEL ADJ., INCLUDED ANGLE CLOCKWISE ....... 14 DEG.
LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 3" TO 180" IPM
MANUAL TRAVERSE, HANDWHEEL PER REV. ............. 0.50"
FINE HAND TRAVERSE KNOB GRAD. ................. 0.0005"
CROSS FEED HANDWHEEL GRAD. ................... 0.0002"
ONE DEPRESSION OF FINE FEED LEVER KNOB ....... 0.0001"
AUTO INFEED @ TABLE REVERSALS ...... 0.0001" TO .0006"
REDUCTION IN DIAMETER .............. 0.0002" TO .0012"
CROSS TRAVERSE OF WHEELHEAD ....................... 7"
WHEELHEAD, SWIVELS, LEFT & RIGHT ......... 180 DEGREES
WHEEL SIZE ............................. 12" X 1" X 5"
WHEEL SPEEDS (2) ................... 1,750 & 2,300 RPM
WHEELHEAD MOTOR ................................. 2 HP
INFINITELY VARIABLE WORKHEAD SPINDLE
SPEEDS ................................ 30 TO 300 RPM
WORKHEAD SPINDLE TAPER ........................... #3MT
APPROX. FLOOR SPACE REQUIRED ............... 134" X 54"
APPROX. MACHINE WEIGHT ...................... 4,600 LBS
"EIU" SINGLE SWIVEL WHEELHEAD DESIGN
FINE FEED MECHANISM FOR INFEED
FINE FEED KNOB FOR TABLE TRAVERSE
DUAL LIVE/DEAD WORKHEAD SPINDLE
SWING AROUND I.D. GRINDING ATTACHMENT
COOLANT SYSTEM (TANK, PUMP, ETC)
