> MC12079 2.8GHZ+ ÷64/128/256 prescaler divider (qty:3)
MC12079 2.8GHZ+ ÷64/128/256 prescaler divider (qty:3)

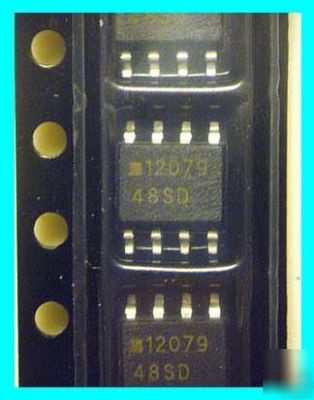

This 3pc-lot prescalers from Motorola help Phase Lock Loop (PLL) design by providing a dividing function to the rf signal. Although it was specified at 2.8GHz, I use this at 3GHz+ (I don't guarantee though!) with selectable 64, 128 or 256 ratios by pin 3 & 6. For divide-by-2 prescaler, please check my other upb1508.
Check its operating frequency range from below graph!
* Supply Voltage 4.5 to 5.5 V
* Low Power 9mA Typical at VCC = 5.0 V
* Operating Temperature Range of 40 to 85 C
There are numerious projects using this popular prescaler as a front end to frequency meter like this one by Mark S. Henkel.
Euro 14.90 each (~ Euro 45/3pcs) by Barend Hendriksen HF Electronics
* All S&H cost include free registered mail service and tracking number to be provided upon requested.
* I would let you when I dispatch your items so you may have an idea when it will arrives your country.
* You may track your item through the Hong Kong Post Office. Just key in the tracking number I provided on their enquiry url here.
