> Elmo hv-5000XG high res xga visual presenter 10X zoom

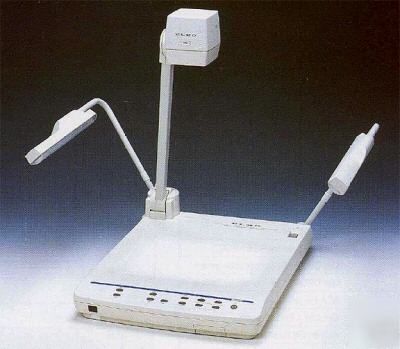

Elmo hv-5000XG high res xga visual presenter 10X zoom
The HV-5000XG offers versatile features for high-quality presentations. XGA clear image reproduction as well as video
True XGA resolution plus NTSC/PAL video output
1/3" 850,000 (1,077 x 788) pixels Progressive-scan CCD
Converts the external analog RGB input into video output
Wireless remote control (not included)
Input selection: 3 modes (Internal/RGB1/RGB2)
RGB input: Mini DSUB 15 pin connector female
RGB output: Mini DSUB 15 pin connector female
S-Video output: Mini DIN 4-pin connector
Upper lighting unit: Built-in, 6W flourescent lamp x2
Shooting area: Max 350x260mm (13.8" x 10.2")
Zooming: Powered (with double speed function)
Iris: Auto (with level adjustment)/Manual
RS-232C control terminal: DSUB 9P
Dimensions: Set-up: 27.6(W) x 21.3(D) x 24.6(H) in (700 x 542 x 625 mm)
Dimensions: Folded: 15.7(W) x 26.0(D) x 6.6(H) in (400 x 660 x 168 mm)
Image pick-up element: 1/3" progressive scan CCD
Total picture element: 1,077(H) x 788(V)
Effective picture element: 1,024(H) x 768(V)
Horizontal resolution: More than 600 TV lines (RGB output) More than 400 TV lines (Video output)
Analog RGB output: XGA (1,024 x 768@75Hz), VESA
C-video output: NTSC/PAL compatible
S-Video output: NTSC/Pal compatible
Gamma selection: Built-in (1.0/0.6)
Video output selection: Built-in (NTSC/PAL)
Flicker correction: Built-in (60/50Hz switch selection)
Shooting speed: 15 frames/sec.
