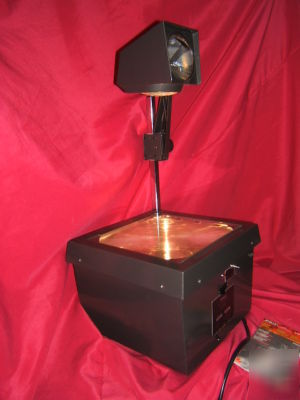

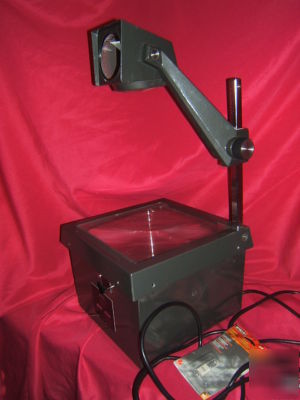

Eiki overhead projector 3870 lamp changer with spare
- All Metal Body and Frame design requires virtually no maintenance
- Tamper Proof sealed head protects optics from dust, dirt and fingerpriints
- Positive Alignment Fresnel and polished aluminum reflector ensures -uniform reflection and even screen brightness
- Precision-coated lens with front surface mirror
- Long Life EYB 86 volt Quartz-Halogen lamp
- Heavy duty piano hinged platen
- Pre-drilled platen for roll feed, carry handle and accessory shelve attachment
- Adjustable projection head tilts up 25 degrees or down 5 degrees
- Durable Snap-Action on-off switch
ANSI Lumens 2000 Projection Lamp 360 Watt, 86 Volt (ANSI Code EYB-5) Estimated Lamp Life 75 Hours
Lens Speed & Focal Length 14" Doublet Front Elevation Up 25 degrees, down 5 degrees
Condenser System Mirror-coated plastic fresnel Projection Heads Sealed
Lamp Changer with installed lamps Dimensions 13.25" x 13.25" x 9.75"
Mirror Front surface high reflection type Stage Aperture 10" x 10"
Cooling System Rear-vented, forced air system
Power Switch On/Off rocker type Weight 17.5 lbs.
Power Requirements 120 Volt, 50/60 Hz Power Consumption 400 W Approx.
Power Cord 10', 3-prong (grounded) attached Safety Compliance UL Listed
