> 5KP20A diode transient voltage suppressor (10) lot
5KP20A diode transient voltage suppressor (10) lot

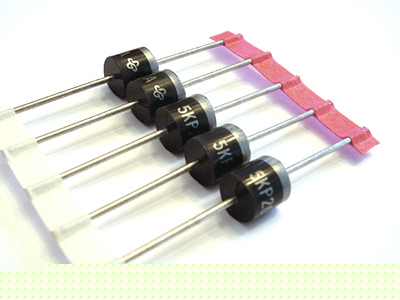

5KP20A Diode Transient Voltage Suppressor (10) LOT
TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
Breakdown Voltage: 22.2V min; 24.5V max
Stand-Off Voltage (Vwm): 20.00V
Maximum Reverse Leakage at Vwm Ip: 10uA
Maximum Peak Current Ippm: 154A
Maximum Clamping Voltage Ippm: 32.4Vc
Maximum Temperature Coefficient of Vbr: 0.099 C
(Electrical Characteristics at TA=25 C)
-Plastic package has Underwriters Laboratory Flammability Classification 94V-0
-5000W peak pulse power capability with a 10/1000ms waveform repetition rate (duty cycle): 0.05%
-Excellent clamping capability
-Low incremental surge resistance
-Fast response time: typically less than 1.0ps from 0 Volts to V(BR)
-Devices with V(BR)>10V ID are typically ID less than 1.0uA
-High temperature soldering guaranteed:
265 C/10 seconds, 0.375" (9.5mm) lead length; 5lbs. (2.3 kg) tension
Case: Molded plastic body over glass passivated junction
Polarity: The color band denotes the cathode which is postitive with respect to the anode under normal TVS operation
Manufactured by: General Semiconductor
West Florida Components Inventory number: DI061
