Vmic vmivme-3123-121 vme 16 channel analog input board

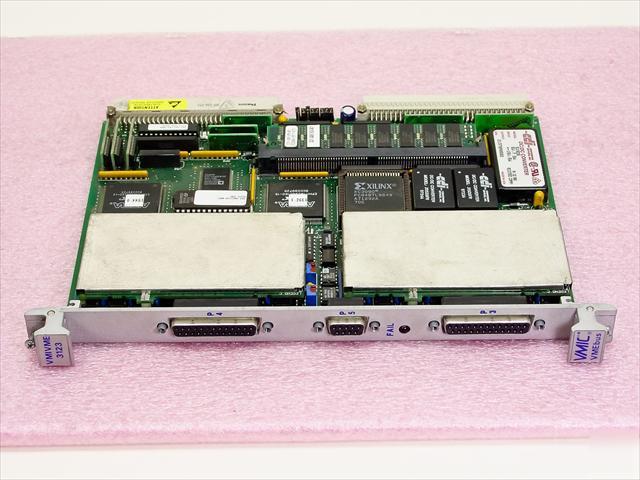

VMIC VMIVME-3123-121 VME 16 Channel Analog Input Board
16-bit High-Throughput Analog Input Board, 16 Channels with Simultaneous Sample-and-Hold Inputs
* 16 differential analog input channels
* Software-selectable as 1, 2, 4, 8, or 16 active channels
* 16-bit A/D converters; one per channel
* Simultaneous sample-and-hold inputs
* 1,600 kHz aggregate sample rate
* 100 kHz per channel; 200 kHz with channel pairing
* Digital calibration; no channel trimmers
* Built-in-Test; internal references applied to channel inputs; all active devices tested
* Large data buffer; up to 4 million data samples
* Transient capture mode triggering on input signal
* Triggering capabilities : Internal, external, VME host triggering, or multiboard synchronous
* 10 V, 5 V input ranges with bipolar option and +10 V, +5 V input ranges with true unipolar option
* Low pass filters for anti-aliasing
