Mastech auto-range true rms dmm digital multimeter

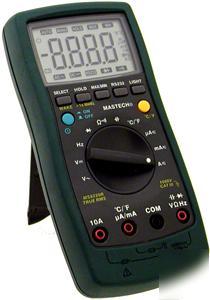

Mastech Auto-Range True RMS Digital Multimeter, MS8220R
The Mastech MS8220R is a true RMS digital auto/manual ranging digit multimeter with RS232 PC interface (software included), with which you can easily log and plot your data on your computer. It comes with all standard multimeter testing measure AC/DC voltage up to 1000 volts, AC current up to 10 amps with true RMS readings. It's also capable of measuring wide range frequency from 0-60MHz, capacitance from 6nF to 6 mF, and temperature from -40F to 1832F.
SPECIFICATIONS (click to see details):
* DC Voltage: 6/60/600V 0.5%, 1000V 0.8%
* AC Voltage: 6/60/600V 0.8%, 1000V 1.0% (True RMS)
* DC Current: 600 /6000 /60m/600mA 1.2%, 10A 1.5%
* AC Current: 600 /6000 /60m/600mA 1.5%, 10A 2.0% (True RMS)
* Resistance: 600/6k/60k/600k/6MM 1.0%, 60MM 1.5%
* Capacitance: 6nF 1.8%, 60n/600n/6 F 1.0%, 60 /600 /6mF 1.5%
* Frequence: 6000/60k/600k/6M/60MHz 0.5%
-40 C~500 C 2.0%, 501 C~1000 C 2.9;
-40 F~932 F 2.0%, 933 F~1832 F 2.9%;
* Autorange And Manual Range
* Max./Min. Value Measurement
