> New kele mob 8 MOB8 panel switch manual override board
New kele mob 8 MOB8 panel switch manual override board

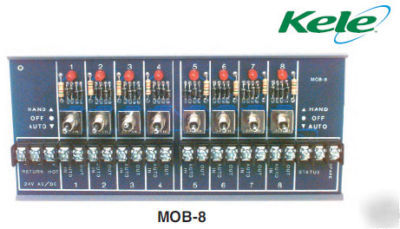

New Kele & Associates MOB-8 Manual Override Board - Control Panel Switch Bank.
MOB-8 Manual Override Boards are designed to add hand/off/automatic operation to any group of controller outputs. They may also be used as stand-alone override switch banks.
* Ability to convert four or eight outputs to hand/off/auto operation
* Wire-captive screw termination
* Direct load control without external relays
* Ability to convert four or eight outputs to on/off/auto operation
MOB-4, MR-604/T: 24 VAV/VDC @ 65 mA max (half-wave)
MOB-8, MR-608/T: 24 VAC/DC @ 130 mA max(half-wave)
MR-604, 608: 10A @ 120 VAC, 24 VAC/VDC
MOB-4,8: Hand/Off/Auto toggle switch
MR-604, 608: On/Off/Auto slide switch
Operating temp: -10 to 140 F (-20 to 60 C)
Humidity: 10% to 95% RH noncondensing
Mounting: Snap-track (furnished)
MOB-4: 3.25"H x 3.75"W x 1.6"D (8.3 x 9.5 x 4.1 cm)
MOB-8: 3.25"H x 7.5"W x 1.6"D (8.3 x 19.1 x 4.1 cm)
MR-604/T: 3.25"H x 4.25"W x 1.2"D (8.3 x 10.8 x 3.1 cm)
MR-608/T: 3.25"H x 8.5"W x 1.2"D (8.3 x 21.6 x 3.1 cm)
MOB-4, MR-604/T: 0.4 lb (0.2 kg)
MOB-8, MR-608/T: 0.8 lb (0.4 kg)
