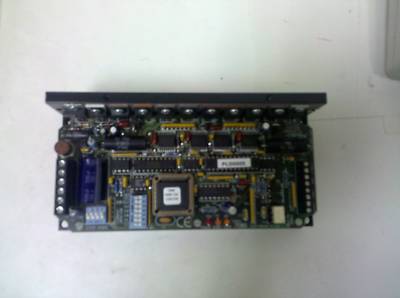

Stepper motor control board model #7080
BRAND NEW, NEVER USED STEPPER MOTOR CONTROL BOARD #7080 WITH USER MANUAL
* DRIVES NEMA SIZES 14 THROUGH 42 STEP MOTORS
* MOSFET PULSE WIDTH MODULATION SWITCHING AMPLIFIERS (3 STATE)
* PHASE CURRENT FROM 0.8 TO 7.0 AMPS/PHASE (SWITCH SELECTABLE, 32 SETTINGS)
* STEP, DIRECTION AND AMPLLIFIER ENABLE INPUTS, OPTICALLY ISOLATED
* OVER TEMPERATURE AND OVER CURRENT (SHORT CIRCUIT) PROTECTION
