Pro audio digital sound level meter 30~130DBA/bc lcd uk
Digital Products & Entertainment for all All Items Brand New - UK Stock - Delivered Fast - No VAT - No Import Duty - More in Store !
UltraDisk Digital Voice Recorders
UKET is based in Manchester England
CONTACTBY POST- UKeTraders, PoBox 326, Manchester, United Kingdom, M28 2YW.

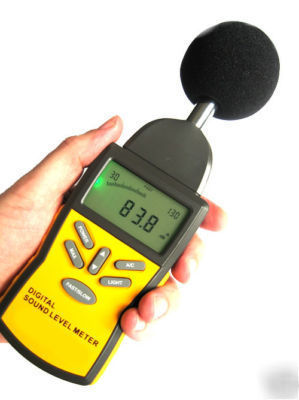

Pro Audio Digital Sound Level Meter to ~130 dB .
This portable and professional audio digital sound level meter has been designed to meet the exacting measurement requirements of Audio Engineers, Safety Engineers, Health, Industrial Safety offices and Sound Quality control in various environments. Designed according to the specification of IEC651 TYPE2& ANSI S1.4 TYPE2 for sound level meters.
Measure Range 30~130dBA 35~130dBC
Digit & Resolution 5Digits & 0.1dB
Sampling Frequency 2 times/sec
full specifications and functions below
Microphone 1/2 Inch Electret Condenser Microphone
Time Weighting Selection Fast/Slow
Standard Accessory RS232 caliber -1pcs Drive CD -1pcs ( only for 834) User's Manual-1pcs Gift box
Battery Type 6-1.5v AA (Alkaline or DC Adapter) NOT INCL
1) This unit was designed according to the IEC651 TYPE2& ANSI S1.4 TYPE2 for sound level meters.
2) Instantaneous sound measure function.
3) Measurement range: 30-130 decibel
4) With two equivalent weighted sound pressure levels, A and C.
5) Fast & Slow dynamic characteristic modes.
6) AC and DC signed output for frequency analyzer level recorder, FFT analyzer, graphic recorder etc.
1) Accuracy: 1.5 dB (under reference conditions)
2) Frequency range: 31.5 Hz~ 8.5K Hz
4) Measuring level: 30~130 dBA, 30~130 dBC
7) Bar graph: 50 dB scale at 1 dB step for monitoring current sound pressure level display period: 50 mS
8) evel ranges)30-80 dB) 50-100 dB)60-110 dB) 80-130 dB)
9) Over indicate over range:Under indicate less than lower limit of the range.
10) AC output: 0.707 Vrms at FS output impendance approx 600
11) DC output: 10 mV / dB output impedance approx 100
12) Time weighting: Fast / Slow
13) Microphone: 1/2 inch Electret Condenser microphone
15) Power supply: 1*9V alkaline cells or DC 9V adapter Power life: About 30 hrs (calkaline cells)
16) Self calibration time: 10 sec (every turn on)
17) Operating Temperature: 0c to 40c
Operating Humidity: 10% to 80% RH
18) Storage Temperature: -10c to 60c
Please use a Standard Acoustic Calibrator.
1) Make the following settings:
Measurement mode: MAX function disable
2) Insert the microphone carefully into the 1/2 inch hole of the Calibrator.
3) Turn on the Calibrator and adjust the Prote-ntiometer in back top of the unit (shown in the diagram 1 ). The level of the unit (shown in the diagram 1) The level display will indicate the desired Level (94.0).
5) Maximum value hold switch. (MAX)
6) Level range control switch:
7) Time weighting select switch.
Fast: For normal measurements.
Slow: For checking average level of fluctuating noise.
8) Frequency weighting select switch.
A: A weighting for general sound level measurements.
C: C- weighting for checking the low frequency content of noise.
10) External DC 9V power supply terminal.
11) AC output terminal: 0.707 Vrms Corresponding to each range step.
12) DC out put terminal: output 10 mV/ dB
2) Instantaneous sound pressure level.
4) Maximum value is held during measuring.
1) Open battery door and install four 9V battery in the battery compartment.
3) When the battery voltage drops below the operating Voltage, mark appears . Please replaced with new one.
4) When the DC adapter is used, insert the plugs (3.5 ) of the adapter into the DC 9V connector on the side panel.
2) Select the desired response and weighting, also select desired rang.
3) If weighting for general noise sound level, please select dBA.
4) If the sound source consists of the short brusts of only catching sound peak, set response to FAST. to measuring average sound level, use the slow setting.
5) When MAX mode is chosen.The instrument captures and hold the maximum noise level.
1) Do not operate the unit at high temperature and Humidity environment.
2) Please take out battery from unit if not in use for any extended period of time.
3) Once using the unit in the presence of wind, it is a must to mount the windscreen to not pick up undesired signals.
4) Operating Environmental conditon:
