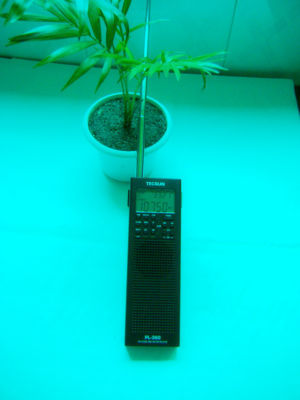

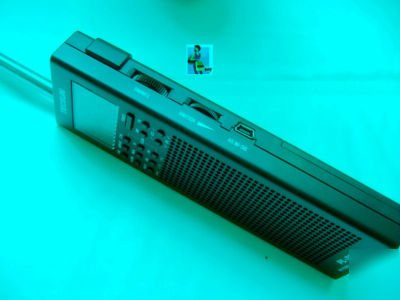

PL360 tecsun dsp radio etm pll fm.sw.mw.lw pl-360 +gift
The machine adopts the si4734 U.S. SILICON LABS digital signal processing (DSP) chip, the analog FM / AM digital broadcasting signal conversion, the original use of modern software radioManagement of its processing and demodulation, greatly improves the listening sensitivity, selectivity, signal to noise ratio, and anti-jamming capability
can receive FM stereo, AM (can be extended to long-wave), short wavelength (2.3 ~ 21.95MHz)program, more practical functions, easy operation, especially power
FM receiving frequency range can be set to receive 76 ~ 108MHz (Japan standard), 87 ~ 108MHz, or 87.5 ~ 108 MHz (European standard)
External antenna jack with AM, AM with the supplied external antenna can greatly improve the AM / L-band receiver sensitivity
has a very useful multi-function digital adjustment knob, can be used to set the time, adjusting the frequency, select the address
has five tuning methods: easy tuning (ETM), manual search program frequency (VF), manually search the stored program (VM), visit the program automatically searches the frequency of browsing, stored The
program, which is German born ETM improve the efficiency of original .
can be manual, semi automatic (ATS) program to store up to 450 frequencies, including FM / in the long wave can each save 100, 250 short-wave frequencies can be kept
multi-function display: can display shows frequency, field strength, signal to noise ratio, temperature, battery capacity status, etc.
Use a special high sensitivity film speakers, sound beautiful, listen to FM stereo radio with headset
has broadcast regular boot, you can listen to a pre-boot time program, can also be set to 90 minutes in an auto-stop function alarm ring
highly intelligent power switch function: You can set the boot 1 to 120 minutes after the automatic shutdown, but also cancel the automatic shutdown feature
Use the 3PCS AA battery, you can also use nickel-metal hydride batteries and intelligent battery charging (USB jack)
PL-360 basic technical indicators
(FM)76 - 108 MHz; smart step 0.01/0.1 MHz Can choose the frequency coverage:
Standard: 87 - 108 MHz (applies in Japan, Germany, Russia, other than national standards).Germany: 87.5 - 108 MHz .Japan: 76 - 108 MHz (including part of the campus radio and national 4 - 5 channel TV audio).
(SW)2300 - 21950 kHz; Smart Step 1 / 5 kHz
(MW)522 - 1620 kHz; Smart Step 1 / 9 kHz (for Asia, Africa and Europe)520 - 1710 kHz; Smart Step 1 / 10 kHz (for North America)150 - 1620 kHz; (covering long wave) Intelligent Step 1 / 9 kHz
Frequency Modulation (FM) (S / N = 30dB) better than 3 uV
AM (MW) (S / N = 26dB) better than 2 mV / m built-in antenna.
AM (MW) (S / N = 26dB) better than 1 mV / m external antenna
Long Wave (LW) (S / N = 26dB) better than 12 mV / m built-in antenna.
Long Wave (LW) (S / N = 26dB) better than 4 mV / m external antenna
Short wave (SW) (S / N = 26dB) better than 30 uV
Frequency Modulation (FM)> 60 dBAM (MW)> 60 dB
FM stereo separation: better than 25 dB.
Output Power:Speaker: 350 mW Headphones: 10 mW / 8 - 32 stereo headphones.
the number of stored memories: a total of 450 Frequency modulation (FM) 100 Ge In the long-wave (MW) 100 Ge Short wave (SW) 250 Ge.
Naoxing mode: radio alarm rang.
Frequency Modulation (FM) <25mA.
AM / long wave (MW / LW) <23mA.
Short wave (SW) <27mAShutdown Standby <90uA.
diameter 40 mm / 16 Film Speaker.
Power supply:Battery: 3 AA batteries or rechargeable batteries.
External power jack: USB specification / DC 5V 300mA.
Weight: About 128g (without batteries).
Appearance patent number: 200830217914.9

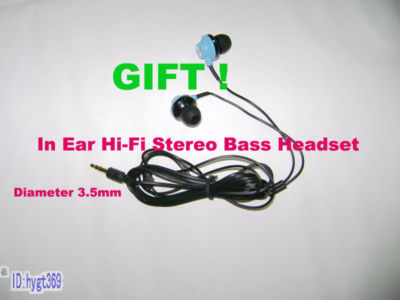

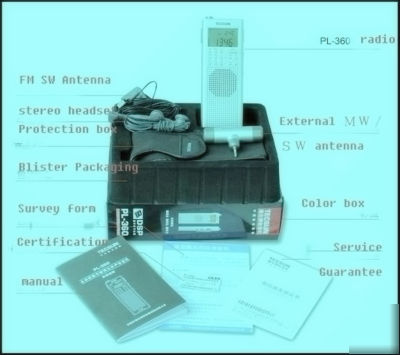

Supplied Accessories:Stereo headphones, protective cover, external ,FM / shortwave antenna, the long-wave external antenna, instruction ,manual, certificate, service guarantee, service tracking survey.+gift(stereo bass headset)
