> New greenlee cmi-200 RMS2500A ac clamp meter CMI200

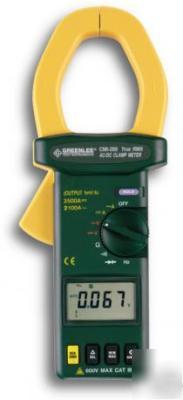

New greenlee cmi-200 RMS2500A ac clamp meter CMI200
Name: 2500A Industrial Clamp Meter
Spec: Amperage Measurement: AC - 400.0, 2100A; DC - 400.0, 2500A Voltage Measurement: AC - 4.000, 40.00, 400.0, 600V; DC - 400.0mV; 4.000, 40.00, 400.0, 600V Display: 3-3/4-digit, 4000-count (9999 for frequency) Frequency: 99.99, 999.9Hz; 9.999, 99.99, 999.9kHz Resistance: 400.0O; 4.000, 40.00, 400.0kO; 4.000, 40.00MO Jaw Opening: 2.17" (55 mm) Voltage Output: 1mV output per 1 amp input Measurement Category: Cat III, 600V
Description: True RMS for accurate measurement when harmonics are present.
* High capacity 2500A DC, 2100A AC amperage measurement.
* 600V AC/DC voltage, frequency, and resistance measurements for maximum versatility.
* Peak hold, min-max, relative offset, and analog bar graph to help monitor power changes.
* Produces 1mV per amp output to allow use as a remote transducer, linked to a multimiter or oscilloscope.
* Accessories included: (1) 9V battery, test leads, carrying case
