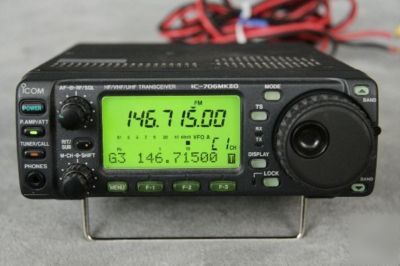

Icom 706 mk ii g plus ldg Z100 auto tuner & cables

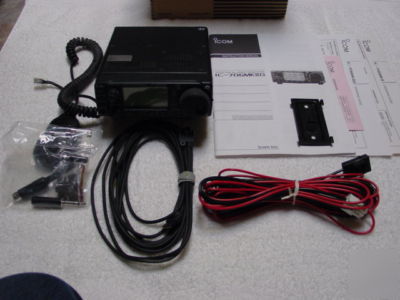

MIC, POWER CABLE, SEPARATION CABLE, ORIGINAL MANUAL , ACCS. KIT, FACEPLATE MOUNT AND BOX.
USB, LSB, CW, RTTY (FSK), AM, FM, WFM (Rx only)
107 (99 regular, 6 scan edges, 2 call channels)
SO-239x2 (for HF/50 MHz and 144/430 MHz)/50
http:// /en/products/amateur/hf/706/specifications.aspx
EXCELLENT CONDITION(Never Used)
INCLUDES CABLES TO CONNECT TO THE IC-706MK2G.

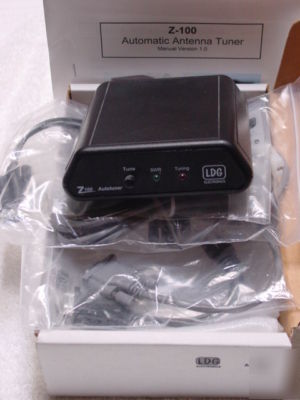

Low cost 0.1 to 125 watt autotuner. 200 memories, zero power consumption when not tuning, latching relays, interfaces for all popular radios and 160 thru 6 meter coverage.
* Continuous coverage 1.8 to 54 MHz
* Power rating HF (1.8 to 30 MHz): 0.1 to 125 watts
* Power rating 6 meters: 50 watts
* High efficiency switched "L" tuning network
* Tuning time: 0.5 to 6 seconds, 3 seconds average
* Antenna impedance: 6 to 800 Ohms (10:1 HF SWR) (3:1 6M SWR)
* Latching relays, holds tune position forever.
* Optimized, low power consumption tuning algorithm
* Power requirements: 9 to 16 volts DC @ 300 mA max (user supplies power source)
* Enclosure: 5.5 x 5.25 x 1.5 inches 14 oz (14.0 x 13.5 x 3.8 cm 400 g)
