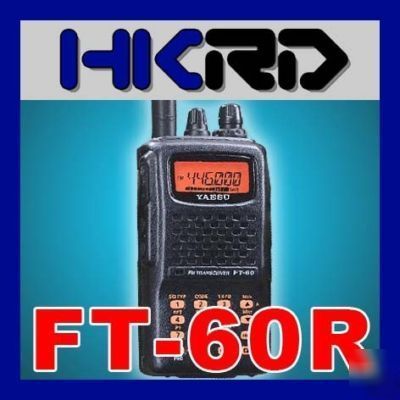

New yaesu ft-60R dual band ham radio transceiver FT60R
Dual Band FM Handheld Transceiver
Yaesu's newest 144/430 MHz 5-Watt FM Hand-held was introduced at Dayton 2004. The FT-60R includes wide receiver coverage, outstanding audio quality, the most CTCSS/DCS flexibility in the industry, and a new Emergency Automatic Identification (EAI) feature for search-and-rescue work.
Over 1000 Memory Channels w/Alpha-numeric Labels
Ten Memory Banks for Channel Allocation
High Power Output: 5 Watts
Long-life FNB-83 (7.2 V/1400 mAh) and Overnight Charger included
CTCSS and DCS Encode/Decode, with Split Tone and DCS Encode-only Capability
One-Touch NOAA Weather Access
NOAA Severe Weather Alert with Alert Scan
Nine DTMF Auto-Dialer Memories
Two Front Panel Programmable Keys
Convenient Access Key for Vertex Standard s WIRES (Wide-coverage Internet Repeater Enhancement System)
RF Squelch (only passes signals exceeding programmed level)
Mono-band and Memory-only Operating Modes
Rugged Die-cast, Water-resistant Case Construction
Transmit Time-Out Timer (TOT) and Automatic Power-Off (APO)
Automatic Repeater Shift (ARS)
YAESU s exclusive ARTS (Auto-Range Transponder System) which "beeps" the user when you move out of ommunications range
700 - 999 MHz (Cellular Blocked)
5/10/12.5/15/20/25/50/100 kHz
6 to 16 VDC Negative Ground
2.3 (W) x 4.3 (H) x 1.2 (D) in. (58 x 109 x 30 mm)
(W/O knob, antenna, and belt clip)
13.05 oz. (370 g.) with FNB-83, and antenna
Double-conversion super heterodyne (VHF/UHF)
1st: 47.25 MHz & 2nd: 450 kHz
0.8 V TYP for 10 dB SN (108-137 MHz, AM)
(Cellular Blocked) 0.2 V for 12 dB SINAD (137-140 MHz, FM)
0.3 V TYP for 12 dB SINAD (174-300 MHz, FM)
0.8 V for 10 dB SN (300-336 MHz, AM)
0.25 V for 12 dB SINAD (336-420 MHz, FM)
0.2 V for 12 dB SINAD (400-470 MHz, FM)
0.25 V for 12 dB SINAD (470-520 MHz, FM)
0.5 V TYP for 12 dB SINAD (800-900 MHz, FM)
0.8 V TYP for 12 dB SINAD (800-999.990 MHz, FM)
12 kHz/35 kHz ( 6 dB / 60 dB)
>60 dB below carrier (High and Mid)
Specifications are subject to change without notice, and are guaranteed within amateur bands only.
Frequency ranges and repeater shift may vary according to transceiver version.
FT-60R's accessories (not included)
There are original accessories of FT-60R. Please browse our listings if you are interested.
