New kdf wax master ii dental lab

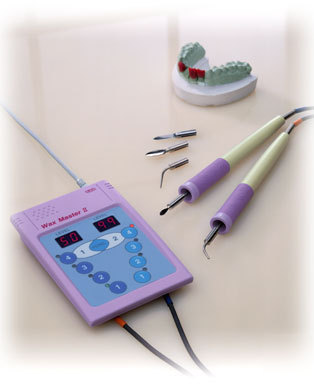

KDF Wax Master II Dental Lab NEW
THE LEADING EDGE IN DENTAL WAX-UP TECHNOLOGY
Heat-sensor, Temperature adjustment,
& Power switch built into the pens.
Super compact and simple in design
Easy wax-up with micro-computerized device
Temperature adjustment switch and heat sensor built into the
Comfortable, soft to the touch pens
Excellent in safety and efficiency
The pocket-sized Wax Master II is only 2cm (0.8 inches) in height and requires minimal space for installation. You can put it in on your workspace, in your pocket or use the wall bracket to install the Wax Master II on the wall.
POWER SWITCH ON THE PEN AS WELL AS A HEAT SENSOR BUILT INTO THE THERMAL TUBE
Temperature adjustment can be done with the temperature up/down switches on the pen and the heat-cut switch simplifies your coning technique. The heat sensor in the thermal tube controls the temperature with extreme accuracy without being affected by the surrounding wind, temperature, or power voltage
The computerized system controls precise heating, 4 memory programs with independent temperature settings, temperature monitoring with 3 color LED displays (heat rise, hold, cool) and quick heat-up.
The accurate temperature level display makes fabrication consistent with replicable results.
STANDARD CARVING TIPS INCLUDED
Five types of tips are provided for the various requirements of waxing-up.
The specialized attachment prevents the tips from loosening or turning during your waxing.
CLEAN ENVIRONMENT FOR YOUR DENTAL LAB
The Wax Master II allows for a cleaner lab environment with no odors.
Compared to the cost of running a Bunsen burner, the electrical consumption of the Wax Master II will cost less.
Two different circuits are programmed to detect abnormal heat rise and the Wax Master II has an automatic shut off feature which will cut the power to the unit after a certain amount of idle time.
*Tips are grind-able for easy customization.
Input AC100-240V 50/60Hz; Output DC12V 1.5A
Controller 80(W) x 21(H) x 120(D) mm (3.1(W) x 0.8(H) x 4.7(D) inches
Controller 74g (2.6oz) Pen 31g (1.1oz) AC Adaptor 190g (6.7oz)
