Kenwood th F6AT 144/220/440 handheld transceiver THF6AT

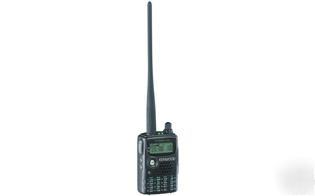

KENWOOD TH F6AT 144/220/440 Handheld Transceiver
Finally, the Amateur Handheld that everyone has been waiting for, the New Kenwood TH-F6A. The TH-F6A is a 144/220/440 MHz transceiver/receiver with dual-channel RX capability in a compact and powerful design. The first Tri-Band HT with 3 bands you can operate EVERY DAY! The TH-F6A boasts a list of unique features the competition is still scratching their heads over.
* 144/220/440 MHz with 5 WATTS on all 3 bands
* Famous Loud and Clear Kenwood Audio
* Dual Channel Simultaneous Receive even on the same band
* Easy access Single Knob Encoder/volume control
* 7.4 Volt 1550 mAh Lithium Ion battery (largest & most power in the industry)
* 4 Selectable Transmit Power Levels
* Backlit laser-cut keypad for durability
* MIL-STD 810 for vibration, shock and light rain
* Built-in CTCSS Encode/Decode / DCS Digital Coded Squelch
* 10 DTMF Auto-patch memories
* 1200/9600 bps TNC ready (no adapter required)
* Single High Performance Antenna (no switching required)
* Weight with PB-42L Battery 8.8 oz.
* First Ever Compact Amateur HT with Built-in VOX
* 435 PC Programmable Memories (over twice the competition)
* 3 Call Channels plus 20 for programmable scan
* Special (10) Channel Weather station mode
* Best HT ever for Satellite operation (including AO-27)
* FM/FM W/FM N/AM + USB & LSB / CW
* 0.01~ 1300 MHz RX (widest transceiver in the industry)
* Built-in battery charging system during DC operation
* Battery Voltage Level Indicator
* LARGE FONT mode for easy reading
* Multi-Scroll Key for easy menu access
* Visual Scan to monitor adjacent channel activity
* Built-in Ferrite Bar antenna for AM receive (0.1 ~ 7 MHz)
* Optional BT-13 Alkaline Battery Case for Emergency use
* Dimensions (W 2 5/26) x (H 3 7/16) x (D 1 3/16) inches
