GLI AccuChlor FX-1000P Residual Chlorine Analyzer

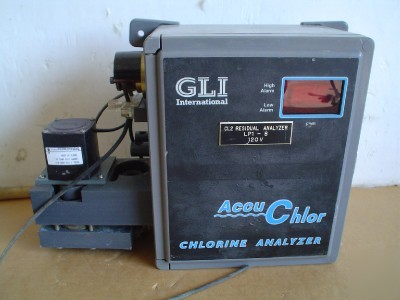

Available here is a GLI International AccuChlor FX-1000P Residual Chlorine Measurement System. I hooked this up to 110V AC power and the pump turns and the display gets a readout. This is as far as I have been able to test this though. It looks like this was sitting for a long time and it got very dusty. I cleaned it up some but it could probably use some more cleaning. In the last picture you can see that two of the thumb nuts that hold the face board on are missing. Everything that is included is shown in the pictures.
The following specs are from an online manual that can be found at https:// /fmmimghach?/CODE%3AMAN-ACHL5994%7C1 .
Type of Measurement................. Amperometric (free or total chlorine)
Measuring Ranges ..................... 0-5.00 ppm (mg/l) factory-set range; other
field-configurable measuring ranges are
0-0.50, 0-1.00, 0-2.00, 0-3.00, 0-10.0,
Display....................................... Four-digit LED; 0.56 in. (14 mm) high
Ambient Conditions.................... 32-120
F (0-49 C); 0-95% relative humidity, F (0-49 C)
Analog Output............................ One isolated 4-20 mA (600 ohms max. load)
Relays ....................................... Two electromechanical relays (high and low
alarms); SPDT (Form C) contacts;
Power Requirements.................. 100-130 VAC, 50/60 Hz. (30 watts);
optional 200-250 VAC, 50/60 Hz.
Sample Temperature Range....... 32-120
Sample Flow Rate...................... 150-1000 ml/min. (500 ml/min. recommended
Sample Supply........................... Where sample flow is interrupted, provisions
must be made to keep the electrodes wet
Sample pH Range...................... 3.0-10.0 pH
Sample Alkalinity Range ............ 0.05-300 ppm (mg/l)
Electrode Materials .................... Cathode (measuring): Gold (23.95 K)
Anode (reference): Copper (99.9%)
Free Chlorine ........................ White distilled vinegar (5% food grade)
Total Chlorine ....................... White distilled vinegar (5% food grade) mixed
with prescribed amount of potassium iodide
Sensitivity .................................. 0.001 ppm (mg/l)
Accuracy.................................... 0.25% of full scale
Repeatability .............................. 0.004 ppm (mg/l) or 1% of full scale,
Stability...................................... 1% of full scale per month
Response Time.......................... 4 seconds from sample entry to display
Full Scale Response .................. 1.5 to 2.0 minutes
Enclosure................................... NEMA 4X; polycarbonate; surface mount
System Net Weight .................... 14.8 lbs. (6.7 kg) approximately
Sample Inlet Line ....................... 3/8 inch (1/4 inch I.D.) clear flexible PVC
Buffer Feed Line......................... Factory-installed #14 neoprene tubing; #13
tubing supplied for lower vinegar consumption in
specific applications where the sample is less
than 7.5 pH and has less than 50 ppm total alkalinity);
each size tubing is 5 ft. (1.5 m) long
Drain Lines (two)........................ Each 3/4 inch (5/8 inch I.D.) clear flexible
