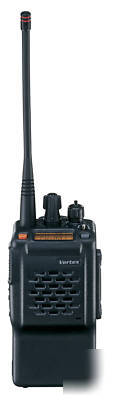

New ** ** vertex standard vx-800U
When communication is critical, you can't leave it to chance. The VX-800 Series of portable two-way radios are specifically designed to perform in the most demanding and critical conditions. Manufactured to strict ISO 9002 and MIL-STD specifications, the VX-800 series will perform when you need it most. With industry leading features such as Lithium Ion battery technology and advanced programmable user defined features, the VX-800 series sets the standard for Public Safety applications now, and in the future.
(selectable 2.5, 1 and 0.25 W Power Levels)
* Digital ANI Encoder/Decoder Option: The VMDE-200 Encodes MDC1200, GE Star or DTMF ANI per channel / Decodes & Displays incoming IDs on radio! Click HERE for more information
(Motorola Format Digital ANI Encoder)
(See VX-800 Accessories F2D-8)
Program up to 10 Two-Tone pairs (1 per ch)
* Battery, Belt Clip & Antenna included
* 12.5/25/30 KHz Bandwidth (Programmable By Channel)
* Positive Lock Channel Selector
* Advanced 8 Character Invertible
* 1600mAh Lithium-Ion Battery
* ARTS (Auto Range Transpond System)
* Tx/Rx Battery Saver Circuit
* Programmable/User Scan Modes
* Voice Inversion Encryption Available
* Weight only 300 grams w/FNB-V62L1, antenna and belt clip
-30 Degrees C to + 60 Degrees C
58 x 110 x 28.9 mm (2.3"x 4.3"x 1.1")
300 grams (0.7 lbs.) with FNB-V62LI, antenna, belt clip
Measurements made per EIA standard TIA/EIA-603
Double Conversion Superheterodyne
>75 dB (25 KHz)/>70dB (12.5 KHz)
>75 dB (25 KHz)/>68dB (12.5 KHz)
>75 dB (25 KHz)/>65dB (12.5 KHz)
0.5 W @ 16 ohms w/ 3% THD (BTL output)
Measurement made per EIA standard TIA/EIA-603
5 / 2.5 / 1 / .25W (Selectable)
Direct FM 16KOF3E / Direct FM 11KOF3E
5 KHz (25 KHz) / 2.5 KHz (12.5 KHz)
>45 dB (25 KHz) / >40 (12.5 KHz)
