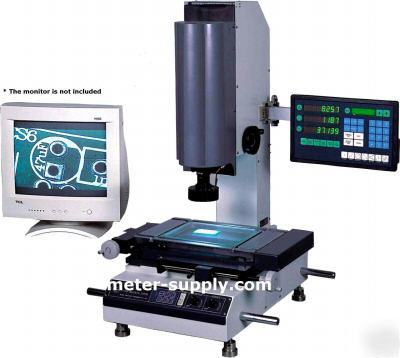

Model 2515, video measuring instrument system
Video Measuring Instrument System (Standard)
It is mainly applied in 2D measurement. It is widely used in different kinds of precision finishing industries, such as mechanism, electronic, plastic and so on.
Video measuring system is a photoelectric measuring system of high precision and efficiency. It is composed of a series of components, such as CCD color camera of high resolution, continuous zoom lens. Color monitor, video crosshairs generator, precision linear scale, multi-functional digital reading panel, 2D measuring software and high precision worktable. It is supplied with RS-232 interface, The user can manage and output the graph by connecting with PC and running the measuring program
3. Key for extending the functions of crosshairs or edge detecting
4, 6. Key for increasing or decreasing brightness
10. Knob for adjusting brightness of contour light
11.Knob for adjusting brightness of surface light
Resolution X-axis and Y-axis and Z_axis : 0.001mm
Indication error of X-axis, Z-axis : <=(3+L/75)um
230V(AC) / 50HZ or 110V(AC) / 60Hz., surface and transmission illumination all use LED, and the light is adjustable
Loading weight>350kg, Dimension:1000(L)*600(W)*500(H)mm
* Measure the Point, Line, Circle, Arc and Ellipse feature with multi-point;
* The functions of Axis-skew and coordinate-shift are very convenient;
* The functions of element-combination can enhance the efficiency;
* Save as *.dxf and edit in AutoCAD;
* The data can be sent to Excel and Word;
* Shift between in English and Chinese;
* Record, edit and run the program.
Can measure the Point, Circle, Arc and Angle.
Can measure the rectangle with state points.
Can identify the Point, Line, Circle and the Arc Automatically.
Construct the Center, Point of intersection, Midpoint, Line, Circle and Angle.
* Element preset: Point, Line, Arc, Angle.
* Graph manage: Coordinate move and coordinate skew, any axis skew.* Zoom in, Zoom out, Move, Print, Select, Circle select, Delete.
* Set the image's grayness, saturation, contrast, the image can be saved as *.bmp.
* Hardware:P4, 1.7G, USB interface, PCI slots and one COM port (9 pins)
* Shielding resolution:1024*768(best);Screen color quality:24"or 32".
* Operation system:Windows2000,Windows XP.
* Application: Excel, AutoCAD
Cross line and sample viewing section
*Delivery Time subject to final confirmation.
Software Operation Demonstration
