2 smc tie rod air cylinder 6" stroke CA1BN63-150

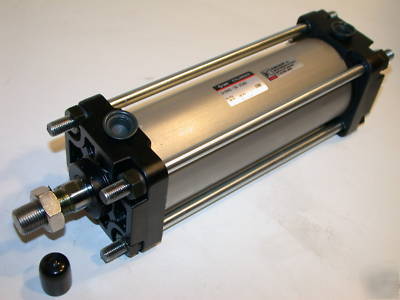

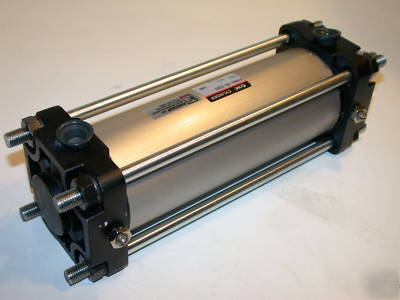

2 SMC TIE ROD AIR CYLINDER 6" STROKE CA1BN63-150
This cylinder has 6 Inches (150mm) of Stroke, piston measures .787" (20mm) and has a large 2 1/2" (63mm) bore.
Series NCA1 medium-duty tie rod cylinders are NFPA interchangeable, have a crimped piston rod assembly and are pre-lubricated .
A standard wear ring provides extended seal life and the floating cushion design eliminates piston bounding.
Max. operating pressure - 150 psi
Floating cushion seal design eliminates piston rod bouncing due to cracking pressure at beginning of stroke.
The square covers are made of an aluminum die-casting and provide a lower cost, lighterweight product.
The absorption of kinetic energy has been increased by nearly 30% through increase cushion volume and the use of a new cushion seal.
